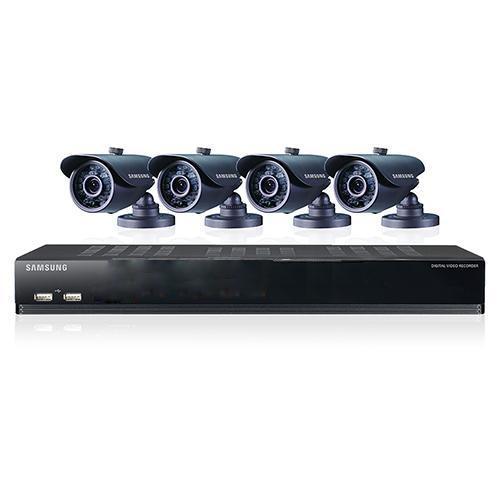

SDS-V4041N is a Samsung security system with 8 channels and part of Samsung new line of DIY security DVRs with BNC connectors. The SDS-V4041N comes with 4 BNC security Box cameras (SDC-5440BC). The Samsung surveillance cameras included in the kit are rated IP66 and record at 600TVL. The 4 Samsung cameras included in the kit connect to the DVR using 60ft Siamese BNC cables. You also receive a special accessory that will allow you to power your BNC cables through the DVR rather than an outlet.
SDS-V4041N is a home surveillance system you can trust. It has intuitive features, and givesyou security and convenience hand in hand. Your Security DVR will come with a 500GB HDD. It also utilizes H.246 compression technology that will extend our record time to its maximum length. You’re Samsung security system can be monitored remotely. Set your Samsung surveillance cameras to detect motion then set your security DVR system to send email alerts when motion is detected. Your DVR security system can also be connected to your other Samsung security systems. Smartviewer, a software developed by Samsung, will connect an infinite number of Samsung security systems for monitoring in one central location.
Your Surveillance DVR and Video Surveillance Cameras Includes the following features:
Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iPhone and android devices.
4 IP66 weatherproof security cameras (SDC-5440BC)
4 open channels for future expansions
4 x 60ft BNC/AC Power Siamese Cable
Samsung surveillance cameras record at 600TVL.
240 total FPS (Frames per second)
500GB of storage USB 2.0 and records using H.264 compression technology.
Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.
Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.
One of the most flexible CCTV systems out in the market today.
4 Surveillance Cameras Included, Room for 4 more:
Samsung SDC-5440BC is a metal security camera. It is weatherproof with an IP rating of IP66. It was record at 600 TVL and has a night vision range of maximum 50 ft. The SDC-5440BC will use a 60ft of Siamese BNC cable included in the kit. The SDC-5440BC has lenses with focus length of 3.6mm, a vertical visual angle of 53?, and a horizontal visual angle of 67?. As you know, you have 4 Samsung surveillance cameras straight out of the box but also 4 open channels.
For your home or business, Samsung SDS-V4041 is your security system that is both dependable and affordable. Everything you need to setup and get started is in the box. The SDS-V4041 features an 8 channel DVR with a 500GB hard drive. In the box, you will find 4 IP66 BNC night vision weather proof cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on.
Free Lifetime Technical Support by Samsung
Samsung offers lifetime technical support on this product so you are always covered.
Durable and Easy Setup Cameras
IP66 Weather & Dustproof
All of the cameras are IP66 compliant which means that they are both weatherproof (6) and dustproof (6) and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.
The new SDC-5440BC camera that comes within your package can be installed on the wall, ceiling, shelf or a desired position using the provided bracket. The bracket can be easily adjusted and has through cable design.
Best Image Available
600 TVL High Resolution Cameras
Samsung security systems are known for their high quality recordings. All the cameras (SDC-5440BC) for the SDS-V4041 capture video with 600 television lines of resolution for a clear, crisp picture. Also these cameras can provide brighter colors and more details with wide field of view.
50 ft. Night Vision with IR cut filter
The SDC-5440BC camera is night vision capable and can detect and show objects as far as 50 feet even in complete darkness. Each camera also equipped with IR cut filter for best daytime image quality.
Be Connected At All Times
Monitor from your PC or Mac (Web Viewer)
You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDS-V4041 to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs.It's truly a system that's been developed with you, the consumer's convenience in mind.
Free Smartphone/iPhone App available (Mobile Viewer/iPOLis)
Scan the QR code with your phone to upload iPOLis mobile, the remote viewing app developed by Samsung. You can also search for it on your app store.
Manage Multiple Systems on One Screen (Smart Viewer®)
You can view an infinite number of sites from one control location with your SDS-V4041. Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.
Large Storage Capacity and Easy to Review
500GB HDD (Designed to handle security DVR recordings)
The SDS-V4041 comes with a 500GB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video.
The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.
HDMI (High-Definition Multimedia Interface)
Not like previously SDS series (ex. SDE-5001N), the new SDS series equipped with HDMI to display high digital quality images on your existing monitor or LCD/LED TV. By using this input, you can pass digital video and audio signal from Samsung DVR to your monitor (needed to be equipped with speaker) and LCD/LED TV to hear or observe your stored footage.
VGA (Video Graphics Array)
The standard analogue output for all Samsung security system including SDS-V4041. In order to maxmize your display capability with VGA, we highly recommend to use 15-pin VGA cable rather than 12-pin VGA cable (due to compatibility issue).
Video Inputs 8 Composite video 0.5-1 Vp-p, 75 ohm
Resolution NTSC : 704 x 480
Live Frame Rate NTSC : 240fps
Resolution NTSC : 704 x 480
Multi Screen Display 1 / 4 / 7 / 9 / Sequence / PIP
Operating System Embedded Linux
Recording Compression H.264
Record Rate NTSC : Up to 60fps@704 x 480, Up to 120fps@704 x 240, Up to 240fps@352 x 240
Mode NTSC : Manual, Schedule, Event, Time Laps
Overwrite Modes Continuous
Pre-alarm Off / 5sec
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Playback Search Mode Date/time, Event, Back up, Motion (*All search included prview function)
Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward *Backward play with I-frame only
Network Transmission Speed CIF 120/100fps
Bandwidth Up to 4Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Bandwidth Control Automatic
Stream H.264 (4CIF)
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring SmartViewer, Webviewer, Mobile Viewer
Smart Phone Smart Phone Android, iOS (iPhone, iPad)
Protocol Support RTP, RTSP, HTTP, CGI
Transmission Speed CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)
Max. Remote Users Live 1
StorageInternal HDD 500GB SATA HDD
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player)
SecurityPassword Protection 1 Admin, 10 Group, 10 User per 1group
Data Authentication Watermark
Monitors VGA 1 VGA (1024 x 768, 1280 x 1024)
HDMI 1 HDMI (720p/1080p resolution)
Audio Inputs / Output 4 line in / 1 line out
Sampling Rate 8KHz
Alarm Remote Notification Notification via e-mail
Connections Ethernet 1 RJ-45 10/100Mbps Base-T
USB USB 2.0, 2 ports (Front)
Application Supoort Mouse, Remote control
Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE
Electrical Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt
Power Consumption Max. 40W (With 1x HDD)
Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical Dimensions (WxHxD) 360.0 x 44.0 x 160.0mm (14.17" x 1.73" x 6.30")
Weight (With hard disks)1.60Kg (3.5 lb)
Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek
Input Voltage 12V DC
Power Consumption 3W
Imaging Device 1/3" CMOS
Active Pixels 720 x 480
Scanning System Interlace
Frequency H : 15,734Hz / V : 59.94Hz
Horizontal Resolution 600TV lines
Min. Illumination 0Lux (IR LED)
S/N Ratio (Y Signal) 46dB
Focal Length 3.6mm
Max. Aperture Ratio 2
Angular Field of View D : 72? / H : 67? / V : 53?
Shutter Mode Auto (Rolling shutter)
Gain Control Auto
White Balance Auto (3,200°K ~ 6,500°K)
Digital Noise Reduction Auto
Day & Night Auto
IR Distance (850nm) 15m (50ft)
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH
Ingress Protection IP66
Dimensions (WxHxD) 69.0 x 62.0 x 180.7mm (2.72" x 2.44" x 7.11")
Weight 238g (0.52 lb)
