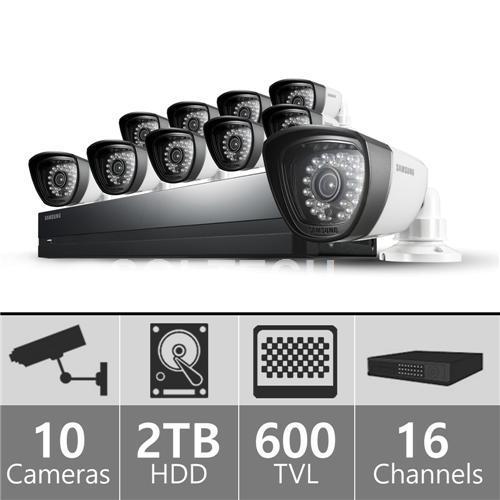

SDS-P5100N is a 16 channel Samsung Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 10 night vision security cameras (SDC-5340BC). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft range. The SDS-P5100N comes with 10 BNC Siamese cables for all 10 of your included surveillance cameras.
SDS-P5100N is one of the very few Samsung Security systems with a BNC cables. Because of the BNC connectors, it is also one of the most versatile Surveillance DVR systems available from Samsung’s DIY line of Home security systems. The system comes with a 2 TB Seagate HDD and it utilizes H.264 compression technology, giving you a long recording time. The DVR security system is easy to set up and easy to use. If you run into any problems, Samsung also offers you a life time technical support service. Your Samsung surveillance cameras can be set for motion detection and for email event alerts. The Surveillance DVR can also be linked with an infinite number of other Samsung Security Systems through smartviewer; a program that allows you to monitor multiple security surveillance systems at one time.
Your Surveillance DVR and Video Surveillance Cameras Includes the following features:
Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iPhone and android devices.
10 IP66 weatherproof security cameras (SDC-5340BC)
10 x 60ft of BNC Siamese cables included
Included Samsung surveillance cameras record at 600TVL.
480 total FPS (Frames per second)
2TB of storage USB 2.0 and records using H.264 compression technology.
Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.
Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.
One of the most flexible CCTV systems out in the market today.
10 Surveillance Cameras Included, Room for 6 more: Samsung SDC-5340BC is a bullet BNC security camera. It is weatherproof with an IP rating of IP66. It records at 600TVL and has a night vision range of maximum 82 ft. The SDC-5340BC will use a 60ft of Siamese BNC cable included in the kit. The SDC-5340BC has lenses with focus length of 3.6mm, a depth visual angle of 72?. As you know, you have 10 Samsung surveillance cameras straight out of the box, but also 6 open channels. You can upgrade your surveillance DVR into a 16 camera security system.
For your home or business, Samsung SDS-P5100N is your security system that is both dependable and affordable. Everything you need to setup and get started is in the box. The SDS-P5100N features an 16 channel DVR with a 2 TB hard drive. In the box, you will find 10 IP66 BNC night vision weather proof cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on.
Free Lifetime Technical Support by Samsung
Samsung offers lifetime technical support on this product so you are always covered.
Durable and Easy Setup Cameras
IP66 Weather & Dustproof
All of the cameras are IP66 compliant which means that they are both weatherproof (6) and dustproof (6) and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.
The new SDC-5340BC camera that comes within your package can be installed on the wall, ceiling, shelf or a desired position using the provided bracket. The bracket can be easily adjusted and has through cable design.
Best Image Available
600 TVL High Resolution Cameras
Samsung security systems are known for their high quality recordings. All the cameras (SDC-5340BC) for the SDS-P5100N capture video with 600 television lines of resolution for a clear, crisp picture. Also these cameras can provide brighter colors and more details with wide field of view.
82 ft. Night Vision with IR cut filter
The SDC-5340BC camera is night vision capable and can detect and show objects as far as 82 feet even in complete darkness. Each camera also equipped with IR cut filter for best daytime image quality.
Be Connected At All Times
Monitor from your PC or Mac (Web Viewer)
You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDS-P5100N to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs.It's truly a system that's been developed with you, the consumer's convenience in mind.
Free Smartphone/iPhone App available (Mobile Viewer/iPOLis)
Scan the QR code with your phone to upload iPOLis mobile, the remote viewing app developed by Samsung. You can also search for it on your app store.
Manage Multiple Systems on One Screen (Smart Viewer®)
You can view an infinite number of sites from one control location with your SDS-P5100N. Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.
Large Storage Capacity and Easy to Review
2 TB HDD (Designed to handle security DVR recordings)
The SDS-P5100N comes with a 2 TB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video.
The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.
HDMI (High-Definition Multimedia Interface)
Not like previously SDE series (ex. SDE-5001N), the new SDS series equipped with HDMI to display high digital quality images on your existing monitor or LCD/LED TV. By using this input, you can pass digital video and audio signal from Samsung DVR to your monitor (needed to be equipped with speaker) and LCD/LED TV to hear or observe your stored footage.
VGA (Video Graphics Array)
The standard analogue output for all Samsung security system including SDS-P5100N. In order to maxmize your display capability with VGA, we highly recommend to use 15-pin VGA cable rather than 12-pin VGA cable (due to compatibility issue).
Video Inputs 16 Composite video 0.5-1 Vp-p, 75 ohm
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Live Frame Rate NTSC : 480fps / PAL : 400fps
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Multi Screen Display 1 / 4 / 6 / 8 / 9 / 16 / Sequence / PIP
Operating System Embedded Linux
Recording Compression H.264
Record Rate NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576
NTSC : Up to 240fps@704 x 240 / PAL : Up to 200fps@704 x 288
NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288
Mode NTSC : Manual, Schedule, Event, Time Laps
PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post)
Overwrite Modes Continuous
Pre-alarm Off / 5sec
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Playback Search Mode Date/Time, Event, Back up, Motion
Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Network Transmission Speed CIF 120/100fps
Bandwidth Up to 4Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Bandwidth Control Automatic
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring SmartViewer, Webviewer, Mobile Viewer
Smart Phone Smart Phone Android, iOS (iPhone, iPad)
Protocol Support RTP, RTSP, HTTP, CGI
Transmission Speed CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)
Max. Remote Users Live 1
Storage Internal HDD 2TB SATA HDD
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player)
Security Password Protection 1 Admin, 10 Group, 10 User per 1group
Data Authentication Watermark
Monitors VGA 1 VGA (1024 x 768, 1280 x 1024)
HDMI 1 HDMI (720p/1080p resolution)
Audio Inputs / Output 4 line in / 1 line out
Sampling Rate 8KHz
Alarm Remote Notification Notification via e-mail
Connections Ethernet 1 RJ-45 10/100Mbps Base-T
USB USB 2.0, 2 ports (Front)
Application Supoort Mouse, Remote control
Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE
Electrical Input Voltage / Current12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt
Power Consumption Max. 40W (With 1x HDD)
Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical Dimensions (WxHxD) 360.0 x 44.0 x 160.0mm (14.17" x 1.73" x 6.30")
Weight (With hard disks) 1,67Kg (3.68 lb)
Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek
Input Voltage 12V DC
Power Consumption 3W
Imaging Device1/3" CMOS
Active Pixels 720 x 480
Scanning System Interlace
Frequency H : 15,734Hz / V : 59.94Hz
Horizontal Resolution 600TV lines
Min. Illumination 0Lux (IR LED)
S/N Ratio (Y Signal) 46dB
Focal Length 3.6mm
Max. Aperture Ratio 2
Angular Field of View D : 72?
Shutter Mode Auto (Rolling shutter)
Gain Control Auto
White Balance Auto (3,200°K ~ 6,500°K)
Digital Noise ReductionAuto
Day & Night Auto
IR Distance (850nm) 25m (82ft)
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH
Ingress Protection IP66
Dimensions (WxHxD) 70.7 x 61.0 x 192.1mm (2.78" x 2.40" x 7.56")
Weight241g (0.53 lb)
