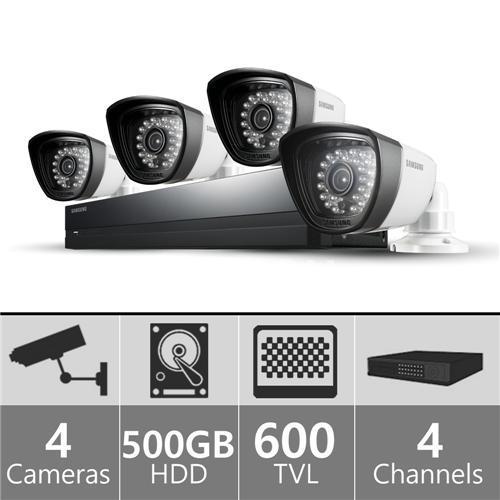

SDS-P3040N is an all-in-one home surveillance system. It comes with Samsung security DVR and 4 BNC security box cameras (SDC-5340BC). The surveillance cameras that come with your security DVR system are rated IP66, making them weatherproof. The cameras record at 600TVL and come equipped with infrared led lamps for night time recording. Your Samsung security system also comes with 4 60ft BNC/AC Power Siamese cables. Unlike the SEA-C200, these cables will not power your surveillance cameras. Instead, the SDS-P3040N will come with a unique accessory that will route power to your cameras via AC power cable through your DVR.
The SDS-P3040N will come equipped with a 500GB HDD. Because Samsung security system utilizes the H.264 compression technology, The SDS-P3040N will have maximum recording time. Your Samsung surveillance cameras can be set for motion detection and your DVR security system can be set to notify you via email whenever motion is detected. Connect your security DVR to your internet router and monitor your Samsung security system remotely on your pc, laptop,Mac,iPhone,iPador android devices. DVR System will also connect with your other Samsung security systems. You can monitor all your Samsung surveillance cameras from one central location using smartviewer. Smartviewer will link all your Samsung security systems so that you don’t have to log in and out from system to system.
Your Surveillance DVR and Video Surveillance Cameras Includes the following features:
Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iPhone and android devices.
4 IP66 weatherproof security cameras (SDC-5340BC)
4 x 60ft BNC/AC Power Siamese Cable
Samsung surveillance cameras record at 600TVL.
120 total FPS (Frames per second)
500GB of storage USB 2.0 and records using H.264 compression technology.
Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.
Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.
One of the most flexible CCTV systems out in the market today.
4 Surveillance Cameras Included:Samsung SDC-5340BC is a BNCsecurity camera. It is weatherproof with an IP rating of IP66. It was record at 600TVL and has a night vision range of maximum 82ft. The SDC-5340BCwill use a 60ft of Siamese BNC cable included in the kit. The SDC-5340BC has lenses with focus length of 3.6mm, a vertical visual angle of 48?, and a horizontal visual angle of 60?.
For your home or business, Samsung SDS-P3040 is your security system that is both dependable and affordable. Everything you need to setup and get started is in the box. The SDS-P3040 features an 4 channel DVR with a 500 GB hard drive. In the box, you will find 4 IP66 night vision weather proof cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on.
Samsung also offers lifetime technical support on this product so you are always covered.
Durable and Easy Setup Cameras
All of the cameras are IP66 compliant which means that they are both waterproof and dust proof and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.
ll of the cameras are weatherproof and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.
Best Image Available
Samsung security systems are known for their high quality recordings. All the cameras for the SDS-P3040 capture video with 600 television lines of resolution for a clear, crisp picture.
In addition, SDS-P3040 records up to 120 frames per second, making your recordings smooth. Lastly, all our cameras are also night vision capable and can detect and show objects as far as 82 feet even in complete darkness. Each camera can be set to record constantly or customized to record based on motion activation or a scheduled times.
Be Connected At All Times
You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDS-P3040 to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs.It's truly a system that's been developed with you, the consumer's convenience in mind.
Scan the QR code with your phone to upload iPOLis mobile, the remote viewing app developed by Samsung. You can also search for it on your app store.
Manage Multiple Systems on One Screen
You can view an infinite number of sites from one control location with your SDS-P3040.
Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.
Large Storage Capacity and Easy to Review
The SDS-P3040 comes with a 500 GB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video. The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.
Samsung Quick Connect: Networking Your DVR Made Easy
Setting up remote viewing is a snap. Simply plug your internet connection to the Samsung SDS-P3040 DVR, load the Quick Connect software onto your PC and your router will be located automatically. Using your PC, follow the three easy configuration steps and then you’re ready to go.
Video Inputs 4 Composite video 0.5-1 Vp-p, 75 ohm
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Live Frame Rate NTSC : 30fps / PAL : 25fps
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Multi Screen Display 1 / 4 / Sequence / PIP
Operating System Embedded Linux
Recording Compression H.264
Record Rate NTSC : Up to 30fps@704 x 480 / PAL : Up to 25fps@704 x 576
NTSC : Up to 60fps@704 x 240 / PAL : Up to 50fps@704 x 288
NTSC : Up to 120fps@352 x 240 / PAL : Up to 100fps@352 x 288
Mode NTSC : Manual, Schedule, Event, Time Laps
Overwrite Modes Continuous
Pre-alarm Off / 5sec
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Playback Search Mode Date/Time, Event, Back up, Motion
Playback Function Fast forward / backward, Slow forward / backward, Step forward / backward
Network Transmission Speed CIF 120/100fps
Bandwidth Up to 4Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Bandwidth Control Automatic
Stream H.264 (CIF)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring SmartViewer, Webviewer, Mobile Viewer
Smart Phone Smart Phone Support
StorageInternal HDD 500GB SATA
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Includes player)
SecurityPassword Protection 1 Admin, 10 Group, 10 User per 1group
Data Authentication Watermark
Monitors VGA Analog RGB 1024 x 768 resolution
Main Composite BNC, 1 Vp-p, 75 ohm
Audio Inputs / Output 1 line in (CH 1) / 1 line out
Sampling Rate 8KHz
Alarm Remote Notification Notification via e-mail
Connections Ethernet 1 RJ-45 10/100Mbps Base-T
USB USB 2.0, 2 ports (Front)
Application Supoort Mouse, Remote control
Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, VICON, GE
Electrical Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt
Power Consumption Max. 40W (With 1x HDD)
Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical Dimensions (WxHxD) 255.0 x 44.0 x 203.5mm (10.04" x 1.73" x 8.01")
Weight (With hard disks)1.58Kg (4.06 lb)
Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek
Input Voltage 12V DC
Power Consumption 3W
Imaging Device 1/3" CMOS
Active Pixels 720 x 480
Scanning System Interlace
Frequency H : 15,734Hz / V : 59.94Hz
Horizontal Resolution 600TV lines
Min. Illumination 0Lux (IR LED)
S/N Ratio (Y Signal) 46dB
Focal Length 3.6mm
Max. Aperture Ratio 2
Angular Field of View D : 72?
Shutter Mode Auto (Rolling shutter)
Gain Control Auto
White Balance Auto (3,200°K ~ 6,500°K)
Digital Noise Reduction Auto
Day & Night Auto
IR Distance (850nm) 25m (82ft)
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 85% RH
Ingress Protection IP66
Dimensions (WxHxD) 70.7 x 61.0 x 192.1mm (2.78" x 2.40" x 7.56")
Weight 240g (0.53 lb)
