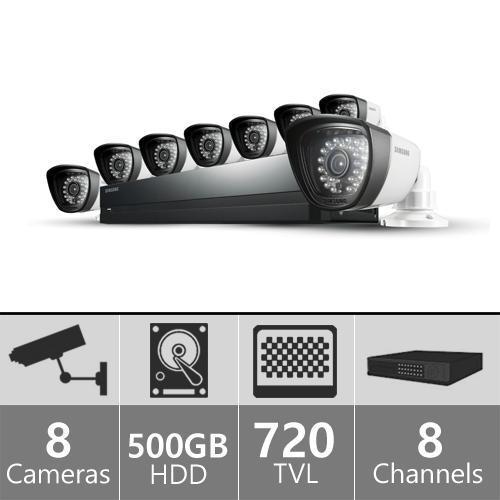

SAMSUNG SDS-P4082 - 8CH 960H SECURITY CAMERA SYSTEM
SDS-P4082 is a 8 channel Samsung Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 8 night vision security cameras (SDC-7340BCN). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft range. The SDS-P4082 comes with 8 BNC Siamese cables for all 8 of your included surveillance cameras.
Product Code: SDS-P4082 Product ID: 23305
Product sold by: samstores.com
Availability: Not In Stock New
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
SDR-4102
Display
Video Inputs 8 Composite video
Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576
Live Frame Rate NTSC : 240fps / PAL : 200fps
Resolution NTSC : 960 x 480 / PAL : 960 x 576
Multi Screen Display 1 / 4 / 6 / 8 / 9 / Sequence / PIP
Performance
Operating System Embedded Linux
Recording Compression H.264
Record Rate NTSC : Up to 240fps@960 x 480 / PAL : Up to 200fps@960 x 576
NTSC : Up to 240fps@704 x 480 / PAL : Up to 200fps@704 x 576
NTSC : Up to 240fps@704 x 240 / PAL : Up to 200fps@704 x 288
NTSC : Up to 240fps@352 x 240 / PAL : Up to 200fps@352 x 288
Mode NTSC : Manual, Schedule, Event, Time Laps
PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post)
Overwrite Modes Stop / Continuous
Pre-alarm Off / 5sec
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Playback Search Mode Date/Time, Event, Back up, Motion
Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Network Transmission Speed 960H / 4CIF / 2CIF / CIF (NTSC : 240fps, PAL : 200fps)
Bandwidth Up to 16Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Bandwidth Control Automatic
Stream H.264 (4CIF / 2CIF / CIF selectable)
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring SmartViewer, Webviewer, Mobile Viewer
Smart Phone Web / App viewer
Supported OS - PC : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 / 10.9, - Mobile: Android OS v.2.4.5, v4.0.3, v4.1.2, v4.3 / iOS OS v5.1.1, v6.0, v6.02, v6.1, v7.0, Supported Browser - Microsft Internet Explorer (Ver. 11, 10, 9, 8, 7), Mozilla Firefox (Ver. 19, 18 ,17 ,16 ,15 ,14 ,13 ,12 ,11, 10, 9),
Google Chrome (Ver. 25,24, 23, 22, 21, 20, 19, 18, 17, 16, 15),Apple Safari (v5.1, v6.1, v7.0) (Mac OS X only - 10.9, 10.8, 10.7)
Protocol Support RTP, RTSP, HTTP, CGI
Transmission Speed CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)
Max. Remote Users Live 1
Storage Internal HDD Up to 1 SATA HDD (500GB)
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Include player)
Security Password Protection 1 Admin, 10 Group, 10 User per 1group
Data Authentication Watermark
Interface
Monitors VGA 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
HDMI 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Audio Inputs / Output 4 line in / 1 line out
Compression G.711
Sampling Rate 8KHz
Alarm Remote Notification Notification via e-mail
Connections Ethernet 1 RJ-45 10/100Mbps Base-T
USB / e-SATA USB 2.0, 2 ports (Front / Rear) / 1 External SATA port
Application Supoort Mouse, Remote control
Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE
COAX Pelco-C, CCVC
Electrical Input Voltage / Current 12V DC adaptor, 100 ~ 240V AC ±10%, 50/60Hz
Power Consumption Max. 36W (With 1x HDD)
Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical Dimensions (WxHxD) 315.0 x 52.0 x 224.0mm (12.4" x 2.05" x 8.82")
Weight (With hard disks) Approx. 1.56Kg (3.44 lb)
Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek
SDC-7340BCN
Electrical
Input Voltage 12V DC
Power Consumption 3W
VIDEO
Imaging Device 1/3" 960H CMOS
Active Pixels 976(H) x 494(V)
Scanning System Interlace
Synchronization Internal
Frequency H : 15,734Hz / V : 59.94Hz
Horizontal Resolution 720TV lines
Min. Illumination Color : 7Lux, B/W : 0Lux (IR LED on)
S/N Ratio (Y Signal) 46dB
LENS
Focal Length 3.8mm
Max. Aperture Ratio F2.0
Angular Field of View H : 75? / V : 66? / D : 80?
OPERATIONAL
Shutter Mode Auto (Rolling shutter)
Gain Control Auto
White Balance Auto (1,800°K ~ 10,500°K)
Digital Noise Reduction Auto
Day & Night Auto
IR Distance (850nm) 25m (82ft)
ENVIR ONMENTALTAL
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH
MECHANICAL
Ingress Protection IP66
Dimensions (WxHxD) 72.1 x 62.9 x 192.4mm (2.84" x 2.48" x 7.57")
Weight 252g (0.56 lb)
