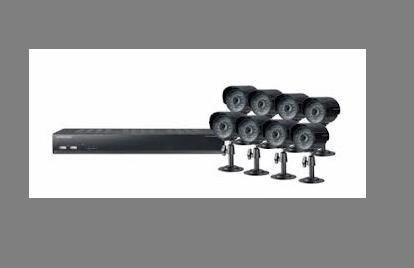

SAMSUNG SDE5003N 16CH SECURITY CAMERA SYSTEM 110 - 240 VOLTS

SDE-5003N is a 16 channel Samsung Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 8 night vision security cameras (SEB-1020). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 50ft range. The SDE-5003N comes with 8 BNC Siamese cables for all 8 of your included surveillance cameras.

SDE-5003N is one of the very few Samsung Security systems with a BNC cables. Because of the BNC connectors, it is also one of the most versatile Surveillance DVR systems available from Samsung’s DIY line of Home security systems. The system comes with a 1 TB Seagate HDD and it utilizes H.264 compression technology, giving you a long recording time. The DVR security system is easy to set up and easy to use. If you run into any problems, Samsung also offers you a life time technical support service. Your Samsung surveillance cameras can be set for motion detection and for email event alerts. The Surveillance DVR can also be linked with an infinite number of other Samsung Security Systems through smartviewer; a program that allows you to monitor multiple security surveillance systems at one time.

Your Surveillance DVR and Video Surveillance Cameras Includes the following features:

 Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iphone and android devices.

8 IP65 weatherproof security cameras (SEB-1020R)

8 x 60ft of BNC Siamese cables included

Included Samsung surveillance cameras record at 480TVL.

480 total FPS (Frames per second)

1TB of storage USB 2.0 and records using H.264 compression technology.

Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.

Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.

One of the most flexible CCTV systems out in the market today.

8 Surveillance Cameras Included, Room for 8 more: Samsung SEB-1020R is a metal security camera. It is weatherproof with an IP rating of IP65. It records at 480TVL and has a night vision range of maximum 50 ft. The SEB-1020R will use a 60ft of Siamese BNC cable included in the kit. The SEB-1020R has lenses with focus length of 3.6mm, a vertical visual angle of 53?, and a horizontal visual angle of 67?. As you know, you have 8 Samsung surveillance cameras straight out of the box, but also 8 open channels. You can upgrade your surveillance DVR into a 16 camera security system.

Other 16 Channel Systems SDE-5001N Samsung’s 16 Channel security DVR system. Comes with 4 x SEB-1005R and 4 x SED-1001R (Dome Camera) Same system as the SDE-5002N but comes with 4 metal security box cameras instead of the plastic.

Item       SDE-5003N

Video     Inputs    16 composite video 0.5-1 Vpp, 75 ohm

Resolution           704x480 NTSC,704x576 PAL

Live        Frame rate          480fps NTSC, 400fps PAL

Resolution           704x480 NTSC, 704x576 PAL

Muti Screen Display         1/4/6/8/9/Sequence/PIP

Performance

Operating System             Embedded           Linux

Recording            Compression      H.264

Record Rate        NTSC : Up to 120fps @ 704 x 480 / PAL : Up to 100ips @ 704 x 576

NTSC : Up to 240fps @ 704 x 240 / PAL : Up to 200ips @ 704 x 288

NTSC : Up to 480fps @ 352 x 240 / PAL : Up to 400ips @ 352 x 288

Mode    NTSC: Manual, Schedule, Event, Time Laps

Overwrite modes              Continuous

Pre-alarm            Off/5sec

Post-alarm          Up to 6hour (5, 10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback            Search mode      Date/Time, Event, Backup, Motion

Playback Function            Fast forward / backward (x2,x4,x8,x16,x32,x64) *Backward Play with I-frame Only, Slow forward / backward (x1/2,x1/4,x1/8), Step forward / backward (x2,x4,x8,x16,x32,x64) *Backward Play with I-frame Only

Network              Transmission Speed         CIF 100/120fps

Bandwidth           Up to (4)Mbps, Unlimited (4M) / 2 / 1.5 / 1 Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kbps

Bandwidth Control           Automatic

Stream H.264 (CIF)

Protocol Support              TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring          Smart viewer, Webviewer, Mobile Viewer

Smart Phone       Smart Phone       Support

Storage                Internal HDD       1TB SATA HDD

DVD Writer (Back up)       Not Supported

USB (Back up)     2 USB ports

Security                Password Protection       1 Admin, 10 Group , 10 User per 1 Group

Data Authentication        Watermark

Interface

Monitors             VGA       Analog RGB 1024 x 768 resolution (BNC or VGA selected in booting)

Main Composite               BNC, 1 Vp-p, 75 ohm

Audio     Inputs / Output 1 Line in(CH1) / 1 line out

Compression      G.711

Sampling Rate    8KHz

Alarm    Remote Notification        Notification via e-mail

Connections       Ethernet              1 RJ45 10/100 Base- T

USB        USB2.0, 2 ports (Front/Rear)

Application Support         Mouse(1EA), Remote Controller

General

Electrical             Input Voltage/Current     DC12V ADAPTOR, 4A, 100~250VAC, 50~60HZ, 48 WATT

Power Consumption        MAX.36W (WITH 1xHDD)

Environmental    Operating Temperature / Humidity            0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical (Set)               Dimension (W x H x D)     360 x 44 x 160mm (14.17" x 1.73" x 6.30")

Weight (With hard disks)                TBD

Language            English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek

SEB-1020R

ELECTRICAL

Input Voltage     DC 12V

Power Consumption        3W

VIDEO

Imaging Device 1/4" OV7950 Color CMOS

Total Pixels         649H x 583V

Scanning System               Interlace

Synchronization                Internal

Frequency           H: 15, 734, V: 59.94 Hz

Horizontal Resolution      480TVL

Min. Illumination              OLux(IR-LED)

S/N Ratio (Y Signal)          46dB

Signal Output      1.0 Vp-p/75 composite

LENS

Focal Length       3.6mm

Max. Aperture Ratio        2

Angular Field of View       H: 67", V: 53"

OPERATIONAL

Shutter Mode     Auto (Rolling Shutter)

Gain Control       Auto

White Balance    Auto (3200K-6500K)

Digital Noise Reduction Auto

Day & Night        Auto

IR Distance          15m

ENVIRONMENTAL

Operating Temperature/Humidity              0C ~ + 40C (+32F ~ + 104F)/20% ~ 85%RH

MECHANICAL

Dimension (W x H x D)     64.7 x 63.9 x 85.0 mm (2.55"x 2.52"x 3.35")

Weight 300g (0.66 lb)
