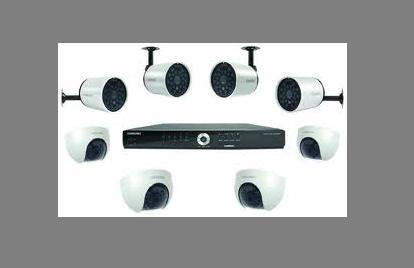

SAMSUNG SDE5002N 16CH SECURITY CAMERA SYSTEM 110 - 240 VOLTS

Samsung SDE5002N 16ch Security Camera System 110 - 240 volts

Consumer views
Submit Review

Print Page Sent to friend
Product Code: SA-SDE5002N   Product ID: 20718 Email for price
Product sold by: samstores.com
No Stock New Product    NO TAX except IL
SDE-5002N truly is a security DVR system with superior and intuitive features. It comes with a 1 TB Seagate HDD. And, with your surveillance DVR system utilizing H.264 compression technology, it will record even longer. The DVR security system can be monitored remotely through your PC or Smartphone. You can also set your Samsung surveillance cameras to motion detection and set your security DVR to send you email alerts. The system can be linked with an infinite number of other Samsung security system through SmartViewer; a program that allows you to monitor an infinite number of Samsung security systems at the same time.

  Shipping Information

  Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-7 business days!
Samstores Product

Samsung SDE5002N 16ch Security Camera System 110 - 240 volts
Technical information sheet of Samsung SDE5002N 16ch Security Camera System 110 - 240 volts
Samsung SDE5002N 16ch Security Camera System 110 - 240 volts

SDE-5002N is a 16 Channel Samsung security system and it is the perfect all-in-one Samsung DVR system for your homes and small businesses. Everything you need in a home surveillance system comes in the box. The SDE-5002N comes with your security DVR and 8 night vision security cameras. It comes equipped with 4 outdoor security cameras (SEB-1007R) and 4 indoor dome cameras (SED-1001R). Your Samsung security cameras have an IP rating of IP66. You also receive 60ft of RJ-45 Cat5e cables (SEA-C200) for each camera. You will be able to connect both, your outdoor security cameras and your dome cameras, to your Samsung DVR using a single cable. This is one of the many advantages of choosing a Samsung security system. The SDE-5002N is the complete security package!


SDE-5002N truly is a security DVR system with superior and intuitive features. It comes with a 1 TB Seagate HDD. And, with your surveillance DVR system utilizing H.264 compression technology, it will record even longer. The DVR security system can be monitored remotely through your PC or Smartphone. You can also set your Samsung surveillance cameras to motion detection and set your security DVR to send you email alerts. The system can be linked with an infinite number of other Samsung security system through SmartViewer; a program that allows you to monitor an infinite number of Samsung security systems at the same time.

Your Surveillance DVR and Video Surveillance Cameras Includes the following features:

Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iphone and android devices.

4 IP66 weatherproof security cameras (SEB-1007R)

4 Indoor dome security cameras (SED-1001R]

8 x 60ft of RJ-45 CAT5e cables included (SEA-C200)

Both indoor and outdoor surveillance cameras record at 520TVL.

480 total FPS (Frames per second)

1TB of storage USB 2.0 and records using H.264 compression technology.

Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.

Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.

One of the most flexible CCTV systems out in the market today.

Audio enabled. Must use Samsung’s audio camera (SEB-1006R)

Wireless cameras available (SEB-1004RW)

8 Surveillance Cameras Included, Room for 8 more: Samsung SEB-1007R is a plastic box security camera. It is weatherproof with an IP rating of IP66. It was record at 520TVL and has a night vision range of maximum feet. Samsung SED-1001R is a dome security camera. It has a dome shape and is designed for indoor use. Both of these cameras will connect to your Samsung DVR Security System through a single RJ-45 Cable (SEA-C200). Both SEB-1007R and SED-1001R have lenses with focus length of 3.8mm, a vertical visual angle of 40?, and a horizontal visual angle of 54?. As you know, you have 8 Samsung surveillance cameras straight out of the box, but also 8 open channels. You can upgrade your surveillance DVR into a 16 camera security system.

Other 8 Channel Systems SDE-5001N Samsung’s 16 Channel security DVR system. Comes with 4 x SEB-1005R and 4 x SED-1001R (Dome Camera) Same system as the SDE-5002N but comes with 4 metal security box cameras instead of the plastic.

SDE-5002 offers up to 16 channels for the ultimate protection. For your home or business, Samsung SDE-5002 is your ultimate security solution. Everything you need to setup and get started is in the box.

The SDE-5002 features an 16 channel DVR with a 1 TB hard drive. In the box, you will find 4 night vision water proof cameras* and 4 indoor dome cameras. Expand to 16 cameras to monitor the most complete protection. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on even when you are not there.

Samsung also offers lifetime technical support on this product so you are always covered.

Be Connected At All Times
With Samsung’s Anytime Anywhere viewing, you can monitor your SDE-5002 system at anytime from anywhere in the world through your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDE-5002 to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs. It brings security and convenience hand in hand.

It's truly a system that's been developed with you, the consumer's convenience in mind. Scan the QR corde withyour phone to upload iPOLIS mobile, the remote viewing app developed by Samsung. you can also search for it on your app store.

Durable and Easy Setup Cameras
The SEB-1007R are rated IP66 and put under a rigorous test to ensure that they are waterproof and dust proof. They can be placed inside or outdoors in the harshest conditions. The SED-1001R are designed for indoor use only. They've been tested and retested to ensure they are built to last.

To make setup easy, a single cable will cover all the wiring needs. This includes power, so you have the freedom to place them anywhere; not worrying whether or not there is an outlet nearby. There’s no stress, no hassle. Just put your cameras where you need them. And with sixteen cameras installed where you most need them, you can cover all of your most vulnerable spots.

Best Image Available
Samsung security systems are known for their high quality recordings. All the cameras for the SDE-5002 capture video with 520 television lines of resolution for a clear, crisp picture. In addition, SDE-5002 records up to 480 frames per second, making your recordings smooth. Lastly, all our cameras are also night vision capable and can detect and show objects as far as 50 feet even in complete darkness. Each camera can be set to record constantly or customized to record based on motion activation or a scheduled times.

Manage Multiple Systems on One Screen

You can view an infinite number of sites from one control location with your SDE-5002. Samsung's Smart Viewer technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.

Large Storage Capacity and Easy to Review
The SDE-5002 comes with a 1 TB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video. The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.

Samsung Quick Connect: Networking Your DVR Made Easy
Setting up remote viewing is a snap. Simply 5002 your internet connection to the Samsung SDE-5002 DVR, load the Quick Connect software onto your PC and your router will be located automatically. Using your PC, follow the three easy configuration steps and then you’re ready to go.

Item

SDE-5002

Video

Inputs

16 UTP Line(CH1-CH16), BNC 2 ports(CH1, CH2)

Resolution

704x480 NTSC, 704x576 PAL

Live

Frame rate

30ips NTSC, 25ips PAL

Resolution

704x480 NTSC, 704x576 PAL

Multi Screen display

1, 4, 6, 8, 9, 13, PIP

Performance

Operating System

Embedded

Linux

Recording

Compression

H.264

Record Rate

NTSC: Up to 60ips @ 704x480 / PAL: Up to 50ips @ 704x576

NTSC: Up to 120ips @ 704x240 / PAL: Up to 100ips @ 704x288

NTSC: Up to 240ips @ 352x240 / PAL: Up to 200ips @ 352x288

Mode

NTSC: Manual, Schedule, Event

PAL: Manual, Schedule, Event

Overwrite modes

Continuous

Pre-event

Off/5/10/20/30sec

Post-event

- Off/5/10/20/30sec
- 1/3/5/10/20min, 1/2/3/4/5/6 hour

Search & Playback

Search mode

Date/time, Event, Backup, Motion (* All Search contains the Preview function)

Playback function

Fast Forward/Backward, Slow Forward/Backward, Step Forward/Backward

Network

Transmission speed

Up to 8Mbps, Unlimited(8Mbps)/2/1.5/1 Mbps/800/600/500/400/300/200/100/50 kbps

Steam

H.264 (CIF)

Max. No. Of Remote Users

Search (3)/ Live Unicast (10)/ Live Multicast (20)

Protocol Support

TCP/IP, DHCP, PPPoE, SMTP, NTP, LIGHTTPD & UDP, DDNS, RTP RTSP

Monitoring

Smart Viewer, Webviewer, Mobile Viewer

Storage

Internal HDD

1 TB SATA HDD

External HDD

-

DVD Writer (Back-up)

-

USB (Back-up)

2 USB Ports

File Format

AVI, SEC, DVR

Security

Password Protection

1Admin, 10 Group, 20 User per 1 Group, User can be assigned authority for function

Data Authentication

Watermark (Only supports in SEC backup viewer)

Interface

Monitors

VGA

Analog RGB 800x600, 1024x768, 1280x1024 resolution

HDMI

-

Main Composite

BNC, 1 Vp-p, 75 ohm

Spot Composite

-

Loop Outputs

-

Audio

Inputs/Ouput

8 UTP Line(CH1~CH8), 2 Port RCA(CH1, CH2)/ 1 line out

Compression

ADPCM

Sampling rate

16KHz

Alarm

Inputs/Outputs

Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs (NO/NC), Rating: 30V DC/2A, 125V AC/0.5A

Remote notification

Notification via e-mail

Connections

Ethernet

1 RJ-45 10/100/1000 Base-T

Serial interface

-

USB

USB 2.0, 2 ports

e-SATA

-

Application Supoort

Mouse, Remote Controller

Protocol support

-

General

Electrical

Input Voltage/Current

100 ~ 240 VAC +/- 10% 50/60 Hz, Autoranging

Power consumption

ADP-4812 Adaptor (2 EA), 12V, 48W+48W

Environmental

Operating Temperature/Humidity

0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical

Dimension (W x H x D)

350 x 44 x 300 mm



Weight (With harddisks)

2.83kg

Language

English, Spanish, French, German, Italian, Polish, Portuguese, Russian, Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Dutch, Thai, Romanian, Serbian, Croatian, Hungarian, Greek



Item

Details

SEB-1007R N

SEB-1007R P

SED-1001R N

SED-1001R P



Electrical



Input Voltage

DC 12V(by UTP)

DC 12V(by UTP)

DC 12V(by UTP)

DC 12V(by UTP)



Power Consumption

2.6W

2.6W

2.2W

2.2W



Video



Imaging Device

MT9V138

MT9V138

MT9V138

MT9V138



Total Pixels

680 x 512

680 x 512

680 x 512

680 x 512



Scanning System

Interlace

Interlace

Interlace

Interlace



Synchronization

Internal

Internal

Internal

Internal



Frequency

H: 15,734 Hz

H: 15,625

H: 15,734 Hz

H: 15,625



V: 59.94 Hz

V: 50 Hz

V: 59.94 Hz

V: 50 Hz



Horizontal Resolution

520TVL

520TVL

520TVL

520TVL



Min. Illumination

OLux (IR-LED)

OLux (IR-LED)

OLux (IR-LED)

OLux (IR-LED)



S/N Ratio (Y Signal)

46dB

46dB

46dB

46dB



UTP

Built-in UTP TX



Maximum Transmission Length: 200m (UTP CAT 5e)



Balanced Differential Impedance: 100 ohm



Lens



Focus Length

3.8mm

3.8mm

3.8mm

3.8mm



Max.Aperture Ratio

2

2

2

2



Angular Field of View

H: 54?

H: 54?

H: 54?

H: 54?



V: 40?

V: 0?

V: 40?

V: 40?



Operational



Shutter Mode

Auto(Rolling Shutter)

Auto(Rolling Shutter)

Auto(Rolling Shutter)

Auto(Rolling Shutter)



Gain Control

Auto

Auto

Auto

Auto



White Balance

Auto

Auto

Auto

Auto



(3200°K~6500°K)

(3200°K~6500°K)

(3200°K~6500°K)

(3200°K~6500°K)



Digital Noise Reduction

Auto

Auto

Auto

Auto



Day & Night

Auto

Auto

Auto

Auto



IR Distance

15m(20EA)

15m(20EA)

10m(12EA)

10m(12EA)



Environmental



Operating Temperature/Humidity

0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH

0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH

0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH

0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH



Mechanical



Dimension (W x H x D)

W59.1 X H59.1 X D72

W59.1 X H59.1 X D72

W102 X H71.7

W102 X H71.7



Weight

95g

95g

160g

160g
