Home » 220 volts Security Systems » 4 CH DVR CCTV / SECURITY SYSTEM

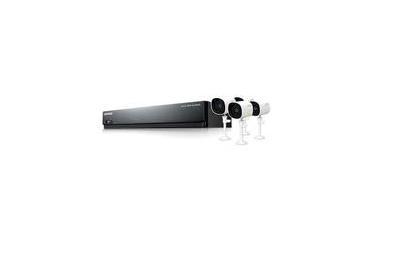

SAMSUNG SDE3003N 4CH DVR WITH 1 AUDIO CAMERA UPGRADE FOR 110 - 240 VOLTS

Samsung SDE3003N 4ch DVR with 1 Audio Camera Upgrade for 110 - 240 Volts

Consumer views
Submit Review

Print Page Sent to friend
Product Code: SA-SDE3003N   Product ID: 20729

$499

Product sold by: samstores.com
In Stock New Product    NO TAX except IL
SDE-3003N is a 4 channel Samsung security system. It is an all-in-one system which includes 4 metal security box cameras (SEB-1005R), 4 60ft Rj-45 CAT5e cables (SEA-C200), and all the needed accessories. The 4 surveillance cameras included in the kit are rated IP66, making them weatherproof. These Samsung security cameras have been tested against strong jets of water. In addition, Samsung SEB-1005R records at 520TVL. The 60ft RJ-45 CAT5e connects video, audio, and power all through the single cable, making installation quick and easy.

  Shipping Information

  Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-7 business days!
Samstores Product

Samsung SDE3003N 4ch DVR with 1 Audio Camera Upgrade for 110 - 240 Volts
Technical information sheet of Samsung SDE3003N 4ch DVR with 1 Audio Camera Upgrade for 110 - 240 Volts
Samsung SDE3003N 4ch DVR with 1 Audio Camera Upgrade for 110 - 240 Volts

SDE-3003N is a 4 channel Samsung security system. It is an all-in-one system which includes 4 metal security box cameras (SEB-1005R), 4 60ft Rj-45 CAT5e cables (SEA-C200), and all the needed accessories. The 4 surveillance cameras included in the kit are rated IP66, making them weatherproof. These Samsung security cameras have been tested against strong jets of water. In addition, Samsung SEB-1005R records at 520TVL. The 60ft RJ-45 CAT5e connects video, audio, and power all through the single cable, making installation quick and easy.

The SDE-3003N gives you an incredible 1TB HDD. Along with the use of H.246 technology, you will get potentially months of recording time. With the full 1TB HDD and 4 metal surveillance box camera with infrared and IP66 rating, and convenient features like remote monitoring and email alerts, the SDE-3003N is a home surveillance system that is in a class of its own. The Security DVR can be connected to your internet router for remote monitors via PC or smartphone. A Samsung developed app called iPOLis mobile is available for your iPhone and android devices. Your Samsung surveillance cameras can be set for motion detection and your security DVR set to send email alerts when motion is detected. Lastly, your SDE-3003N can be connected to your other Samsung DVR systems. Smartviewer is a program developed by Samsung that can give you the ability to monitor multiple Samsung surveillance systems at one central location. You might have multiple businesses with various Samsung security systems involved. You can monitor them all from your home without having to log in and out.

Your Surveillance DVR and Video Surveillance Cameras Includes the following features:

Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iphone and android devices.

4 IP65 weatherproof security cameras (SEB-1005R)

4 Channel Samsung DVR System

4 x 60ft of RJ-45 CAT5e cables included (SEA-C200)

The SEB-1005R record at 480TVL.

120 total FPS (Frames per second)

500GB of storage USB 2.0 and records using H.264 compression technology.

Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.

Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.

One of the most flexible CCTV systems out in the market today.

Audio enabled in channel 1 only. Must use Samsung’s audio camera (SEB-1006R)

Wireless cameras available (SEB-1004RW-IR-Wireless-Camera-With-Audio-">SEB-1004RW)

4 Surveillance Cameras Included for your Four Channels: Samsung SEB-1005R is a plastic box security camera. It is weatherproof with an IP rating of IP66. It was record at 480TVL and has a night vision range of maximum feet. Your Samsung security cameras will connect to your Samsung DVR Security System through a single RJ-45 Cable (SEA-C200). The SEB-1007R has lenses with focus length of 3.8mm, a vertical visual angle of 40?, and a horizontal visual angle of 54?.

Other 4 Channel Systems SDE-3004N Samsung’s 4 Channel security DVR system. Comes with 4 x SEB-1020R. It’s the same system as the SDE-3001N but comes with 4 metal security box cameras with BNC connectors. The SDE-3004N comes with 500gb HDD and record at 480TVL.

For your home or business, Samsung SDE-3003N is your security system that is both dependable and affordable. Everything you need to setup and get started is in the box. The SDE-3003N features an 4 channel DVR with a 1 TB hard drive. In the box, you will find 4 night vision water proof cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on.

Samsung also offers lifetime technical support on this product so you are always covered.

Durable and Easy Setup Cameras

All of the cameras are IP66 compliant which means that they are both waterproof and dust proof and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.

To make setup easy, a single cable will cover all the wiring needs. This includes power, so you have the freedom to place them anywhere; not worrying whether or not there is an outlet nearby. There's no stress, no hassle. Just put your cameras where you need them.

Best Image Available

Samsung security systems are known for their high quality recordings. All the cameras for the SDE-3003N capture video with 520 television lines of resolution for a clear, crisp picture.

In addition, SDE-3003N records up to 120 frames per second, making your recordings smooth. Lastly, all our cameras are also night vision capable and can detect and show objects as far as 50 feet even in complete darkness. Each camera can be set to record constantly or customized to record based on motion activation or a scheduled times.

Be Connected At All Times

You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDE-3003N to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs.It's truly a system that's been developed with you, the consumer's convenience in mind.

Scan the QR code with your phone to upload iPOLis mobile, the remote viewing app developed by Samsung. You can also search for it on your app store.

iPOLis

Manage Multiple Systems on One Screen

You can view an infinite number of sites from one control location with your SDE-3003N.

Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.

Large Storage Capacity and Easy to Review

The SDE-3003N comes with a 1 TB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video. The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.

Samsung Quick Connect: Networking Your DVR Made Easy

Setting up remote viewing is a snap. Simply plug your internet connection to the Samsung SDE-3003 DVR, load the Quick Connect software onto your PC and your router will be located automatically. Using your PC, follow the three easy configuration steps and then you’re ready to go.

Item

SDE-3003N

Video

Inputs

4UTP Line(CH1-CH4)

Resolution

704x480 NTSC,704x576 PAL

Live

Frame rate

30 ips NTSC

Resolution

704x480 NTSC, 704x576 PAL

Performance

Operating System

Embedded

Linux

Recording

Compression

H.264

Record Rate

NTSC : Up to 30fps @ 704 x 480 / PAL : Up to 25fps @ 704 x 576

NTSC : Up to 60fps @ 704 x 240 / PAL : Up to 50fps @ 704 x 288

NTSC : Up to 120fps @ 352 x 240 / PAL : Up to 100fps @ 352 x 288

Mode

NTSC: Manual, Schedule, Event, Time Laps

Overwrite modes

Continuous

Pre-alarm

Up to 5sec

Post-alarm

Up to 6hour (5, 10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search

Search mode

Date/time, Event, Backup, Motion

Playback Function

Fast forward / backward, Slow forward / backward, Step forward / backward

Network

Transmission Speed

100/120fps

Bandwidth

Up to (4)Mbps, Unlimited (4M) / 2 / 1.5 / 1 Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kbps

Bandwidth Control

Automatic

Stream

H.264 (CIF)

Protocol Support

TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring

Smart viewer, Webviewer, Mobile Viewer

Smart Phone

Smart Phone

iPhone, Android phones (*not all Android phones are compatible)

Storage

Internal HDD

1TB SATA HDD

DVD Writer (Back up)

Not Supported

USB (Back up)

2 USB ports

File Format

BU (DVR Player), EXE (Includes Player)

Security

Password Protection

1 Admin, 10 Group , 10 User per 1 Group

Data Authentication

Watermark

Interface

Monitors

VGA

Analog RGB 1024 x 768 resolution

Main Composite

BNC, 1 Vp-p, 75 ohm

Audio

Inputs / Output

1 Line in(CH1) / 1 line out

Compression

G.711

Sampling Rate

8KHz

Alarm

Inputs / Output

Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs (NO/NC), Rating : 24V DC 1A, 125VAC/0.5A

Remote Notification

Notification via e-mail

General

Electrical

Input Voltage/Current

100 ~ 240 VAC +/- 10% 50/60 Hz, Autoranging



Power Consumption

ADP-4812 Adaptor (1EA), 12V, 48W



Environmental

Operating Temperature / Humidity

0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH



Mechanical (Set)

Dimension (W x H x D)

255 x 50 x 213mm (10.04" x 1.97" x 8.39")



Weight (With hard disks)

1.73kg (3.81 LBS)



Mechanical (Package)

Dimension (W x H x D)

406 x 218 x 338mm (15.98" x 8.58" x 13.31")



Weight (With hard disks)

7.03kg (15.5 LBS)



Language

English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek





Item

Details

SEB-1005R N

SEB-1005R P

SED-1001R N

SED-1001R P

Electrical

Input Voltage

DC 12V(by UTP)

DC 12V(by UTP)

DC 12V(by UTP)

DC 12V(by UTP)

Power Consumption

2.6W

2.6W

2.2W

2.2W

Video

Imaging Device

MT9V138

MT9V138

MT9V138

MT9V138

Total Pixels

680 x 512

680 x 512

680 x 512

680 x 512

Scanning System

Interlace

Interlace

Interlace

Interlace

Synchronization

Internal

Internal

Internal

Internal

Frequency

H: 15,734 Hz

H: 15,625

H: 15,734 Hz

H: 15,625

V: 59.94 Hz

V: 50 Hz

V: 59.94 Hz

V: 50 Hz

Horizontal Resolution

520TVL

520TVL

520TVL

520TVL

Min. Illumination

OLux (IR-LED)

OLux (IR-LED)

OLux (IR-LED)

OLux (IR-LED)

S/N Ratio (Y Signal)

46dB

46dB

46dB

46dB

UTP

Built-in UTP TX

Maximum Transmission Length: 200m (UTP CAT 5e)

Balanced Differential Impedance: 100 ohm

Lens

Focus Length

3.8mm

3.8mm

3.8mm

3.8mm

Max.Aperture Ratio

2

2

2

2

Angular Field of View

H: 54?

H: 54?

H: 54?

H: 54?

V: 40?

V: 0?

V: 40?

V: 40?

Operational

Shutter Mode

Auto(Rolling Shutter)

Auto(Rolling Shutter)

Auto(Rolling Shutter)

Auto(Rolling Shutter)

Gain Control

Auto

Auto

Auto

Auto

White Balance

Auto

Auto

Auto

Auto

(3200°K~6500°K)

(3200°K~6500°K)

(3200°K~6500°K)

(3200°K~6500°K)

Digital Noise Reduction

Auto

Auto

Auto

Auto

Day & Night

Auto

Auto

Auto

Auto

IR Distance

15m(20EA)

15m(20EA)

10m(12EA)

10m(12EA)
