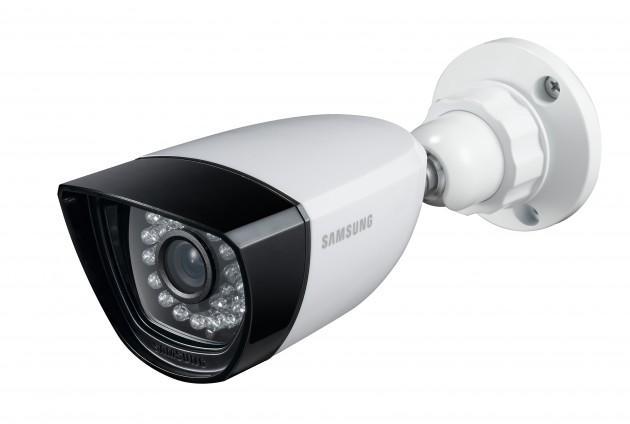

SAMSUNG SDC5340BC WEATHERPROOF NIGHT VISION CAMERA BNC 110 - 240 VOLTS

The SDC-5340BC is Samsung’s surveillance box camera. It is included in several of Samsung all-in-one home surveillance systems. Samsung brings you a quality product that is durable, dependable, and easy to set-up and use. The SDC-5340BC is an outdoor security box camera. It has a weatherproof rating of IP66. It also comes equipped with LED infrared lamps to give it a max range of 82ft during night time conditions. The camera also records at a incredibly crisp 600TVL, well above the industry standards. Lastly, the SDC-5340BC has a bracket that can hides unwanted wire, giving you that extra degree of security and durability.

The SDC-5340BC is compatible with Samsung SDS-V3040, SDS-V4040, SDS-V4041, SDS- V5080, SDS-P3040, SDS-P4080, SDS-P5080, SDS-P5101, and the SDS-P5100, and it is included with SDS-P3040, SDS-P4080, SDS-P5080, SDS-P5101, and the SDS-P5100. Theirbracket makes cable organization betterand they are well sought after. When you purchase the camera separately, it comes with the camera, bracket, screws, and 60ft of cable.

600TV lines high resolution

True Day & Night with ICR for perfect color reproduction

IP66 weather resistant

Night vision up to 82ft

60ft of cable included

Simple Installation

The SDC-5340BC comes with everything you need. You can install your camera anywhere because you know it is durable, weather proof, and night vision cable. It is also connected with BNC connectors, giving you the versatility to be used with other BNC home surveillance system kits. Everything you need to install the camera is included in the box. It’s truly a simple solution to your security needs.

IP66 Compliant

The SDC-5340BC is durable and tested under the harshest conditions. IP66 Compliant means that the cameras has been rated a 6 against solid particles. The 6 rating means that the camera is dust proof. Furthermore, The SDC-5340BC has been given a 6 against liquids. This means that SDC-5340BC has been tested against strong jets of water and unless it is complete submerged under water, it has been declared weather proof.

Auto-Activated Infrared LED, Picture Quality of 600 TVL

The SDC-5340BC has 28 infrared LED lights. These lights illuminate the camera with auto-activated infrared lights, enabling discreet recording in night time conditions. The SDC-5340BC can record up to 82ft. in night time conditions. The SDC-5340BC also records with 600TVL, making the picture quality crisp and clear. Samsung has gone above the industry’s standards in delivering a camera with high resolution recordings.

SDC-5340BC

Electrical

Input Voltage     12V DC

Power Consumption        3W

VIDEO

Imaging Device  1/3" CMOS

Active Pixels        720 x 480

Scanning System               Interlace

SynchronizationInternal

Frequency           H : 15,734Hz / V : 59.94Hz

Horizontal Resolution      600TV lines

Min. Illumination              0Lux (IR LED)

S/N Ratio (Y Signal)          46dB

LENS

Focal Length       3.6mm

Max. Aperture Ratio        2

Angular Field of View       D : 72?

OPERATIRATIONAL

Shutter Mode     Auto (Rolling shutter)

Gain Control       Auto

White Balance    Auto (3,200°K ~ 6,500°K)

Digital Noise Reduction  Auto

Day & Night        Auto

IR Distance (850nm)         25m (82ft)

ENVIR ONMENTALTAL

Operating Temperature / Humidity            -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 85% RH

MECHANICAL

Ingress Protection            IP66

Dimensions (WxHxD)       70.7 x 61.0 x 192.1mm (2.78" x 2.40" x 7.56")

Weight  240g (0.53 lb)
