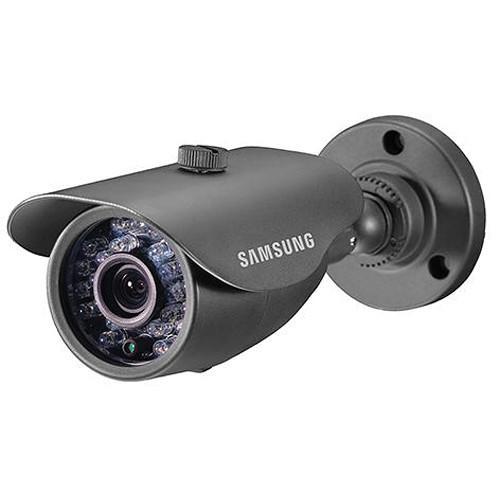

Samsung SDC-5440BC Weatherproof Night Vision Camera BNC 110-220 volts
Product Code: SDC-5440BC Product ID: 24168
Product sold by: samstores.com
SDC-5440BC
Electrical
Input Voltage 12V DC
Power Consumption 3W
VIDEO
Imaging Device 1/3" CMOS
Active Pixels 720 x 480
Scanning System Interlace
Synchronization Internal
Frequency H : 15,734Hz / V : 59.94Hz
Horizontal Resolution 600TV lines
Min. Illumination 0Lux (IR LED)
S/N Ratio (Y Signal) 46dB
LENS
Focal Length 3.6mm
Max. Aperture Ratio 2
Angular Field of View D : 72? / H: 67? / V: 53?
OPERATIRATIONAL
Shutter Mode Auto (Rolling shutter)
Gain Control Auto
White Balance Auto (3,200°K ~ 6,500°K)
Digital Noise Reduction Auto
Day & Night Auto
IR Distance (850nm) 15m (50ft)
ENVIR ONMENTALTAL
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 85% RH
MECHANICAL
Ingress Protection IP66
Dimensions (WxHxD) 69.0 x 62.0 x 180.7mm (2.72" x 2.44" x 7.11")
Weight 238g (0.52 lb)
