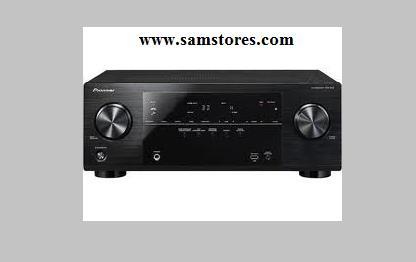

PIONEER VSX522K 5.1 CHANNEL 3D READY A/V RECEIVER 110 VOLTS FOR USA USE ONLY

Introducing the Pioneer VSX-522-K AV Receiver

With 400 watts of clear audio reproduction and state-of-the-art technology, the new VSX-522-K is the perfect entry-level receiver to let you experience Pioneer’s heritage of quality sound reproduction and innovative technology in your home system.

The VSX-522-K seamlessly brings your iTunes music library where you want it: your living room. Because it's Made for iPhone Certified, the VSX-522 is compatible with iPod and iPhone devices. Plus the front panel USB port is ready for the newest sources for music: smartphones, tablets, most Android devices and thumb drives, and has been upgraded to handle CD quality, uncompressed 48Khz/16-bit MP3, WMA and AAC files.

Ultimate Sound Control

The VSX-522-K supports the latest high-definition audio formats like Dolby TrueHD and DTS-HD Master Audio to give your Blu-ray Disc soundtracks unsurpassed audio quality. Pioneer also includes all Dolby and DTS surround formats best suited for the wide variety of available entertainment sources, including the newest Dolby Pro Logic IIz height channel.

The VSX-522-K also features Pioneer's exclusive Multi-Channel Acoustic Calibration system (MCACC), providing an optimized multi-channel listening experience by measuring every speaker's connection, noting its size and distance from the listening point, sound levels and timbre in order to calibrate, customize and maximize performance specifically for your room.

Pioneer's exclusive Phase Control feature provides coherent sound reproduction through the use of phase matching for an optimal sound image at your listening position.

With the unique Front Stage Surround Advance feature, you experience a virtual surround sound environment. If you don’t want to worry about routing speaker cables around your room, your speakers can be placed up front and still sound great.

By filling in areas where minute details were left out during the compression process even audio like WMA, MP3 and AAC is enhanced with another Pioneer exclusive, Advanced Sound Retriever, letting you enjoy near CD quality sound from compressed music sources.

There's also an Auto Level Control, equalizing volume differences between portable audio tracks or television programming and eliminating jarring volume changes. Which means the only thing that shocks you is how good it sounds.

The Latest in HDMI Technology

All Pioneer's newest receivers support the latest HDMI specifications. Not only do you get the most out of existing movies and music, with the VSX-522 you're prepared for the new generation of 3D video content. With 4 HDMI inputs, you have plenty of connectivity options for the growing number of high-definition sources available. All Pioneer receivers also offer advanced HDMI conveniences. The VSX-522-K has Audio Return Channel, which allows TV audio to go back through a single HDMI connection - a must feature for the newest smart TVs. Plus its HDMI Standby Through mode lets video and audio signals pass through the VSX-522-K to the TV even when the receiver is off.

All This and Looks Too

First impressions are everything. That's why, as the heart of your home theater system, the VSX-522-K's modern, compelling lines and stunning new brushed finish reflect a solid, state-of-the-art receiver that's high quality and easy to use.

Pioneer AV Receiver Comparison

• True-to-Life, High-Definition Audio and New Dolby Pro Logic IIzThe VSX-522-K supports the latest high-definition audio formats like Dolby TrueHD and DTS-HD Master Audio to give your Blu-ray Disc soundtracks unsurpassed audio quality. Pioneer also includes all Dolby and DTS surround formats best suited for the wide variety of available entertainment sources, including the newest Dolby Pro Logic IIz height channel.
• Ultimate sound control, ultimate sound reproductionPioneer’s exclusive Phase Control feature provides coherent sound reproduction through the use of phase matching for an optimal sound image at your listening position. And the Pioneer's unique Multi-Channel Acoustic Calibration system (MCACC) provides an optimized multi-channel listening experience by measuring every speaker's connection, sound levels and timbre in order to calibrate, customize and maximize performance specifically for your room. Even compressed audio such as WMA, MP3 and AAC is enhanced with another Pioneer exclusive, Advanced Sound Retriever, by filling in areas where minute details were left out during the compression process. There's also an Auto Level Control, equalizing volume differences between portable audio tracks or television programming and eliminating jarring volume changes. Which means the only thing that shocks you is how good it sounds.
• Experience surround sound even when speakers placed up frontWith the unique Front Stage Surround Advance feature, you experience a virtual surround sound environment. If you don’t want to worry about routing speaker cables around your room, your speakers can be placed up front and still sound great.
• 3D ready with the Latest HDMI TechnologyNot only do you get the most out of existing movies and music, with the VSX-522-K you're prepared for the new generation of 3D video content. With 4 HDMI inputs, you have plenty of connectivity options for the growing number of high-definition sources available. All Pioneer receivers also offer advanced HDMI conveniences. The VSX-522-K has Audio Return Channel, which allows TV audio to go back through a single HDMI connection - a must feature for the newest smart TVs. Plus its HDMI Standby Through mode lets video and audio signals pass through the VSX-522-K to the TV even when the receiver is off.
• Digital Direct connection with your iPod or iPhoneThe VSX-921-K is compatible with iPod and iPhone and is specifically designed to enhance the experience you get from them. Your receiver comes with a USB port in the front, so there's no need to buy a separate dock to access all your music, videos, streaming content, and photos stored on your Apple devices.
• All this and looks too.First impressions are everything. That’s why, as the heart of your home theater system, the VSX-522-K with its modern, compelling lines and stunning new brushed finish, reflects a solid, high quality and easy to use, state-of-the-art receiver.

Learn more about the Pioneer VSX-522-K

General

Brand Pioneer

Type Receiver  Model VSX-522-K

Color Walnut

Channels 5.1-Channel

Processing

Power Output

Power Output per Channel (20Hz-20kHz, 0.08%THD@8ohm): 80W

Power Output per Channel (1kHz@8ohm): 110W

Power Output per Channel (1kHz@6ohm): 140W

Decoder

Dolby True HD
Dolby Digital Plus
Dolby Pro-Logic IIz
DTS-HD Master Audio

D/A Converter

192kHz / 24-Bit Audio D/A Converter

Audio

DSD to PCM Converter: 2 Channel

Auto Level Control: 2 Channel

Advanced Sound Retriever: 2 Channel

Midnight Listening: Yes

Loudness: Yes

Tone Control: 2 Channel

Sound Delay (Lip Sync): Yes (9 Frame)

Video

3-D Ready: Yes

Audio Return Channel: Yes

HDMI Standby Through: Yes (with Input Switch / Last Memory)

HDMI 36-bit Deep Color: Yes

HDMI x.v. Color: Yes

Radio

FM/AM Tuner

30 Preset AM / FM Tuner

Connectivity

HDMI

4 In / 1 Out

Digital Optical Audio

1 In

Digital Coaxial Audio

1 In

Headphone Jack

Yes

Pre-Amp Out

2.1-Channel

USB Port

1

iPod Compatibility

iPhone 4S, 4, 3GS, 3G / iPod touch 4G, 3G, 2G, 1G / iPod classic / iPod nano 6G, 5G, 4G, 3G

Other Connectors

Composite A/V Input / Output: 2 In / 1 Out

Analog Audio Inputs / Output: 1 In (Assignable)

Specification

Remote Control

Yes

On Screen Display

Composite Video Only

Power

Power Supply

AC 120V 60 Hz

Consumption

415 W/ 0.4 W(Standby/HDMI Setup Control: off)

Features

Features

New Brushed Cosmetic Design

iPod and iPhone Digital Audio via Front USB

Charges iPod/iPhone

Auto Power Down

Auto Level Control

Sleep Timer

Dimensions & Weight

Dimensions

17.13" x 6.61" x 13.50" (W x H x D)

Weight

19.18 lbs.
