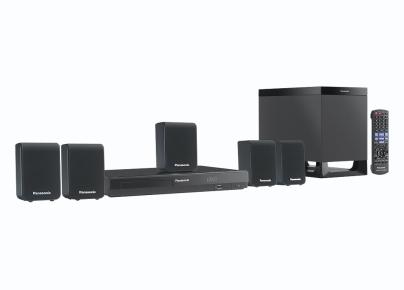

PANASONIC SC-XH10 REGION FREE HOME THEATER SYSTEM FOR 110-240 VOLTS

All region (Regions 1-6) playbacks

Guaranteed to play all old, current and future DVD movies including DVDs that are RCE coded

PAL/NTSC Playback of DVD/VCD

To play PAL movies you need a PAL TV or a Video converter

World Wide Power Supply: 110-240 volts 50-60 hertz

PLAYABLE DISCS

DVD DVD-Video/DivXR1

DVD-R2/

DVD-R DL2/

DVD-RW2 DVD-Video

MP33/ JPEG

DivXR1

+R2/ +R DL2/ +RW2 Video

CD, CD-R/-RW4 CD-DA

VCD

SVCD

MP33/ JPEG

DivXR1

AUDIO SYSTEM

Output Channel 5.1ch

Power Output

Home TheatreMode (RMS)?

Total Power 330 W

Front 50W x 2 (1kHz, 5ohms, 10% THD)

Centre 50W (1kHz, 5ohms, 10% THD)

Surround 50W x 2 (1kHz, 5ohms, 10% THD)

Subwoofer 80W (100Hz, 3ohms, 10% THD)

Dolby Digital Yes

USB

Slot Yes

Front For Playback

Rear -

USB Standard USB2.0 Full speed

Playback JPEG

MP3

DivXR5

HIGH QUALITY PICTURE

Deep Colour -

HIGH QUALITY SOUND

Clear Sound Digital Amplifier Yes

Down Firing Subwoofer Yes

Dolby Pro Logic II Yes

Dialogue Enhancer Yes

Whisper-mode Surround Yes

EQ Yes

Subwoofer Level Yes

EASY TO USE

VIERA Link (HDAVI Control 5) Yes

Auto AUX Link -

Easy Setup Yes

Selectable Speaker Layout Yes

Wireless Rear Speakers -

SPEAKER SYSTEM

Front

Configuration 1 way 1 speaker, Bass-reflex

Speaker Unit [Approx.] Full Range: 6.5cm Cone Type

Centre

Configuration 1 way 1 speaker, Bass-reflex

Speaker Unit [Approx.] Full Range: 6.5cm Cone Type

Surround

Configuration 1 way 1 speaker, Bass-reflex

Speaker Unit [Approx.] Full Range: 6.5cm Cone Type

Subwoofer

Configuration 1 way 1 speaker, Bass-reflex

(Down Firing)

Speaker Unit [Approx.] Woofer: 16cm Cone Type

TERMINAL

Video Out Yes

Component Out Yes

Optical In -

Analog Audio Input?RCA Yes (AUX)

Mic Input -

OTHERS

Video System PAL, NTSC

Power Supply AC110-240V, 50/60Hz

Power Consumption[Approx.]?

Normal Use 50W

Standby 0.8W

Digital Synthesizer Tuner Yes

Station Presets 30-FM

KARAOKE Function -

DIMENSIONS, WEIGHTS

Main Unit[Approx.]

Dimensions (W x H x D) (mm) 360 x 48 x 273

Weight (kg) 2.0

Front Speaker[Approx.]

Dimensions (W x H x D) (mm) 80 x 119 x 68

Weight (kg) 0.32

Centre Speaker[Approx.]

Dimensions (W x H x D) (mm) 80 x 119 x 68

Weight (kg) 0.39

Surround Speaker[Approx.]

Dimensions (W x H x D) (mm) 80 x 119 x 68

Weight (kg) 0.32

Subwoofer[Approx.]

Dimensions (W x H x D) (mm) 180 x 262 x 300

Weight (kg) 3.5
