Oppo's new BDP-103D and BDP-105D are very similar. Both have new features that include 4K video up-scaling (double the resolution than Full HD 1080p blu ray players), 2D-to-3D conversion, dual HDMI inputs, dual HDMI outputs and Mobile High-definition Link (MHL) compatibility. The HDMI outputs also support Audio Return Channel (ARC) for TVs equipped with this feature. There are three USB ports, two on the back and one on the front. What sets the BDP-105D apart is that Oppo added a headphone amplifier and an asynchronous USB DAC input, along with additional coaxial and optical digital inputs. Some existing features of the previous Oppo players were improved in the BDP-103D and BDP-105D, such as the new Netflix application that supports 1080p video and 5.1ch surround audio and a new VUDU application that supports 3D.

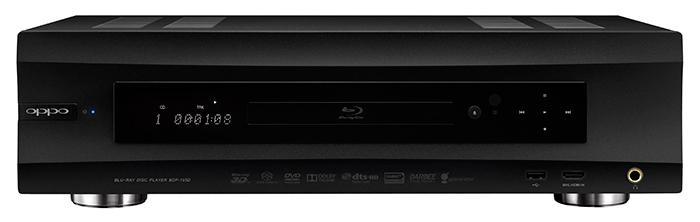

The OPPO BDP-105D is designed from the ground up with components optimized for enhanced analog audio performance. The OPPO BDP-105D features an all-new analog audio stage powered by two ESS Sabre32 Reference Digital-to-Analog Converters (DAC), balanced (XLR) & unbalanced (RCA) dedicated stereo outputs, a Toroidal linear power supply, and asynchronous USB DAC input. These high-grade components are housed in a rigidly constructed metal chassis and work together to deliver exceptionally detailed and accurate sound quality along with reference quality video.
Our version is also full region free so it can play any DVD or Blu Ray from any region on any TV. Plus it comes with world wide voltage as well.
Totally limitless player: Play any Blu-Ray disc and any DVD from any Region/any country on any TV!
Region Free DVD player - plays any DVD from any country on any TV world wide!!
Region Free A/B/C Blu Ray Player - Plays blu ray discs from Region A, Region B, Region C
Region Free 0-6 DVD Player - Plays DVD discs from Region-0 Region 1, Region 2, Region 3, Region 4, Region 5, Region 6. Also plays non-retail regions 7 and 8.
See Region Code Chart for details on which country has which regions.
4K Up-scaling - Enhance the home theater experience with four times the resolution of Full HD 1080p by up-scaling all video sources to 4K (3840 x 2160) output resolution.
2D to 3D Conversion – Take your standard DVD, Blu-ray, and other video content to the next dimension by converting them into 3D with the simple press of a button. The BDP-105D can also adjust the depth and eye convergence levels to suit your personal preference.
Dual HDMI Inputs – Connect external devices such as set-top boxes and network streaming devices to take further advantage of the excellent audio and video processing functions by the BDP-105D. The BDP-105D offers two HDMI inputs, one on the front and one on the back, and the front HDMI input doubles as an MHL input.
USB Asynchronous DAC – By bypassing the low fidelity, poor quality DAC of traditional computer soundcards, the BDP-105D turns any computer into a high performing multi-media source by converting digital audio to analog through the ESS Sabre32 Reference DAC. The BDP-105D supports DSD audio in standard rate (DSD64) or double rate (DSD128 or DSD 2x) via its new USB DAC input. If your computer can play it, the BDP-105D can convert it to analog.
Coaxial/Optical Inputs – For additional convenience and flexibility, the BDP-105D can convert digital signals from cable and satellite boxes, televisions, video-game consoles and other digital transports with coaxial and optical digital outputs to analog.
DMP & DMR - Digital Media Player (DMP) and Digital Media Renderer (DMR) features enable wired or wireless access of audio, picture, and video files stored on DLNA-compatible digital media servers such as a computer or network storage device (NAS).
SMB/CIFS Access - The BDP-105D comes with an experimental feature that can access video, audio and picture files shared by computers on the local network via the Server Message Block (SMB) or Common Internet File System (CIFS) protocol.
Headphone Amplifier – For a more intimate listening experience, a pair of headphones can be connected directly to the BDP-105D’s built-in headphone amplifiers. The headphone amplifier is connected directly to the ESS Sabre32 Reference DAC and offers a unique performance advantage over standalone headphone amplifiers.
Rigid Chassis Construction - Built around a steel chassis, aluminum faceplate, and center-mounted disc loader, the BDP-105D is designed to impress as well as to provide a stable base for the highest quality reproduction of your favorite media.
Fanless Architecture – The BDP-105D is passively cooled, allowing it to run both cool and quiet without the need for internal or external fans.
High Fidelity Audio:
SABRE32 Reference Audio DAC - The DAC is one of the most important components for digital audio playback. The SABRE32 Reference ES9018 from ESS Technology is the world’s best performing 32-bit audio DAC solution targeted for high-end consumer applications and professional studio equipment. With the ESS patented 32-bit Hyperstream™ DAC architecture and Time Domain Jitter Eliminator, the SABRE32 Reference DAC delivers an unprecedented DNR (Dynamic Range) of up to 135dB and THD+N (Total Harmonic Distortion plus Noise) of -120dB, the industry’s highest performance level that will satisfy even the most demanding audio enthusiast. The BDP-105D uses two ES9018 DAC chips - one for the 7.1-channel output, and another for the dedicated stereo output. To learn more about the technologies behind the exceptional performance of the SABRE DAC, please read the SABRE Technical White Paper.
Toroidal Power Supply - A toroidal power transformer offers superior power efficiency and much lower exterior magnetic fields over traditional laminated steel core transformers. The BDP-105D's toroidal linear power supply provides a very clean and robust power source to the critical audio components.
Dedicated Stereo Output with XLR Balanced Connectors - The BDP-105D features a dedicated 2-channel analog output with specially optimized ES9018 DAC and output driving stages. The stereo output offers both XLR balanced and RCA single-ended connectors. The balanced output features a true differential signal path all the way from the DAC to the 3-pin XLR connector. By transmitting a pair of differential signals, the balanced output provides better common-mode noise rejection and improves signal quality.
7.1-Channel Analog Output - Individual analog 7.1-channel surround outputs are ideal for connecting to a 7.1-channel or 5.1-channel surround sound system. The BDP-105D delivers an incredible sound stage and an immersive surround experience. The 7.1-channel analog output can also be configured to a stereo down-mix mode as a Zone 2 audio source.
Dolby® TrueHD - Dolby TrueHD delivers lossless studio master quality audio designed specifically for high definition entertainment. The BDP-105D supports bit-stream output of Dolby TrueHD via its HDMI 1.4a output. It can also internally decode Dolby TrueHD into LPCM and output via HDMI or the 7.1ch analog audio output terminals. Dolby Digital and Dolby Digital Plus audio formats are also supported.
DTS-HD Master Audio™ - DTS-HD Master Audio delivers an auditory experience that matches the lifelike images of high-definition video with up to 7.1 channels that are bit-for-bit identical to the studio master. The BDP-105D supports bit-stream output of DTS-HD Master Audio. It can also internally decode DTS-HD Master Audio and output via HDMI or the 7.1ch analog audio output terminals. (DTS-HD High Resolution Audio and DTS Digital Surround are also supported.)
Full Media Support:
Blu-ray Disc - The high definition Blu-ray Disc™ format provides pristine video and audio quality for your home entertainment.
Blu-ray 3D – Experience high definition in all new dimensions. The BDP-105D supports the Blu-ray 3D specifications and is fully compatible with Blu-ray 3D discs.
SACD - The BDP-105D plays Super Audio CD (SACD) and supports both stereo and multi-channel high resolution audio programs. Users can select whether to output the DSD (Direct Stream Digital) signal in its native format or convert it to PCM.
DVD-Audio - The BDP-105D plays DVD-Audio and supports both stereo and multi-channel high resolution audio programs. Users can select whether to play the DVD-Audio or the DVD-Video portion of the disc.
Netflix Instant Streaming - Instantly watch TV shows & movies streaming from Netflix. Netflix "Just For Kids" is a special selection of kid-friendly TV episodes & movies for younger viewers. It is included with your Netflix unlimited streaming membership. Selected titles support features including 1080p video, 5.1ch audio, subtitles and alternative audio languages.
VUDU HD Movie Streaming - Stream thousands of movies instantly the day-and-date they are released on DVD/Blu-ray in stunning 1080p video, rich 7.1 surround audio and even in 3D.
CinemaNow - Instantly stream the latest new release movies and Next Day TV episodes, plus a library of thousands of blockbuster hits.
Pandora Internet Radio - Personalized music streaming using the Music Genome Project, staying true to their mission: "Playing only the music you'll love".
Rhapsody Online Music - Meet your new music collection complete with millions of songs, entire albums and artist hits spanning the decades. This is more than just internet radio. This is the power to play exactly the songs you want.
Comprehensive Internet Streaming - In addition to Netflix, VUDU, CinemaNow, Pandora and Rhapsody, the BDP-105D provides access to popular entertainment network services from Film Fresh, YouTube Leanback and Picasa.
BD-Live & BonusVIEW - The BDP-105D supports BD-Live™ (Profile 2.0) and contains all necessary hardware - audio/video decoder, Ethernet and wireless networking, and 1GB of internal storage - for BD-Live. It also supports BonusVIEW (Profile 1.1) enabling "picture-in-picture" and audio features for viewing director or actor commentary while the main movie is playing.
Additional Disc & Media Formats - Additional disc and file formats, such as DVD, audio CD, HDCD, Kodak Picture CD, AVCHD, MP4, AVI, MKV and other audio/video/picture files on recorded discs or USB drives can be played back on the BDP-105D. The BDP-105D fully supports high-resolution lossless WAV and FLAC music formats.
Roku Ready™ - Full Roku streaming experience with an optional Roku Streaming Stick plugged in to the MHL Input; Up to 1080p HD; 750+ entertainment channels; Dual-band, extended-range wireless; Compatible with Roku Game Remote.
Unparalleled Video Quality:
Darbee Visual Presence - "It's like lifting a veil." Darbee's Visual Presence™ technology establishes a fundamental breakthrough for image realism. By embedding stereoscopic depth information generated from a patented human-vision-based model into 2D or 3D video, it provides greater clarity and increases the perception of depth resulting in a more dynamic, lifelike experience. The amount of processing is adjustable, allowing you to customize the visual enhancement to your particular taste. More information about Darbee's Visual Presence™ technology can be found.
DVD Up-Conversion - Per-pixel motion-adaptive de-interlacing and advanced scaling transform the standard definition image on DVDs to high definition output on your TV.
Full HD 1080p Output - The BDP-105D features user selectable video output resolutions, including 480i, 480p, 720p, 1080i, 1080p and 4K.
True 24p™ Video - Many Blu-ray Discs are recorded at 24 frames per second, the same frame rate as the original movie's theatrical release. The BDP-105D can faithfully redeliver the original frames using 1080p 24Hz output (compatible display required) for smoother motion and a flicker-free, film-like home theater experience. It can also restore the original 24 frames per second progressive-scan video from well-authored DVDs and output 1080p 24Hz.
Source Direct Mode - For users who wish to use an external video processor, the BDP-105D offers a "Source Direct" mode. The original audio/video content on the discs is sent out with no additional processing or alteration.
Multiple Zoom Modes - The BDP-105D supports multiple levels of aspect ratio control and image zooming. Users can watch a movie in its original aspect ratio, fit to the full screen, or zoom in to remove the black bars on some titles.
Vertical Stretch Mode - For customers with a 2.35:1 CIH (Constant Image Height) display system, the player's zoom options include a vertical stretch mode to work nicely with an anamorphic lens. A unique subtitle shift feature allows the user to move the subtitle up and down, making it possible to see all subtitle text when using a 2.35:1 CIH display.
Advanced Picture Control - Users can have fine control of brightness, contrast, saturation, hue, sharpness, noise reduction, color and contrast enhancements. The player can remember and apply three custom picture control modes to suit a variety of viewing conditions and content types.
Dual HDMI Outputs – Two HDMI v1.4a output ports are provided to offer the most versatile installation options to both older and newer HDMI equipment. You do not have to upgrade your A/V receiver to a 3D model in order to enjoy 3D. One HDMI output of the BDP-105D can be connected to a 3D TV and the other can be connected to a pre-3D HDMI v1.1-v1.3 A/V receiver. For projector users, you can connect one output to a projector for home theater use and the other to a TV for casual viewing. For a multi-room installation the BDP-105D can output audio and video to two 3D or 2D TVs simultaneously.
MHL Input – Simplify connecting smartphones, tablets and other mobile devices to the home theater by using the MHL (Mobile High-Definition Link) input port of the BDP-105D. Display high resolution pictures, 1080p video and listen to pure digital music all while simultaneously charging the connected mobile device. The front HDMI input port of the BDP-105D doubles as an MHL input.
Wireless & Ethernet – Using the included wireless-N adapter or the built-in RJ45 Ethernet port, users will be able to interact with BD-Live content, watch instant streaming programs from providers such as Netflix or VUDU, playback contents stored on their home network, and keep the BDP-105D up-to-date with firmware releases to ensure maximum Blu-ray compatibility.
Triple USB Ports - Three USB 2.0 high speed ports are provided, one on the front panel and two on the back. Users can enjoy high definition video, high resolution photos and music directly from their USB drives.
PAL/NTSC Conversion - The BDP-105D supports NTSC and PAL systems for both disc playback and video output. It can also convert content of one system for output in another. (Subject to DVD and BD region restrictions.)
Back-lit Remote Control - The BDP-105D comes with a fully back-lit remote control for ease of use in dark home theaters. With its ergonomic button layout and clear labeling, operating the Blu-ray Disc player is easier than ever.
World Power Supply - The BDP-105D features a world power supply that is compatible with AC power from all regions. Voltage range from 100V-120V and 200V-240V can be selected by flipping a switch on the back panel.
External IR - For integration into home theater control systems, the BDP-105D provides an external IR IN port to use with an IR distribution system.
RS232 Control - For custom installation, the BDP-105D offers an RS232 control port with a rich control and communication protocol. Installers can easily program their favorite control systems to operate the BDP-105D.
MediaControl Apps – The OPPO MediaControl app turns your mobile device into a remote that provides complete control over your OPPO Blu-ray player. The app is able to browse media libraries, control playback of media files, and even turn the player on and off.
HDMI CEC - HDMI Consumer Electronics Control simplifies the home theater by allowing a single remote control to operate multiple devices.
Gracenote MusicID® and VideoID™ - By connecting to Gracenote's global media database over the Internet, the BDP-105D can offer an enriched playback experience by displaying Cover Art, Title, Artist, Genre and other media information for CD, DVD, Blu-ray and a wide range of digital media files.
Designs and specifications are subject to change without notice.
Disc Types* BD-Video, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, HDCD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
BD Profile BD-ROM Version 2.5 Profile 5 (also compatible with Profile 1 Version 1.0 and 1.1)
Internal Storage1GB (Actual space available for persistent storage varies due to system usage)
Output Analog Audio: 7.1ch, 5.1ch, stereo.
Dedicated Stereo Analog Audio: XLR balanced, RCA single-ended.
Coaxial/Optical Audio: Dolby Digital, DTS, up to 2ch/192kHz PCM.
HDMI Audio: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution, DTS-HD Master Audio, up to 7.1ch/192kHz PCM, up to 5.1ch DSD.
HDMI Video: 480i/480p/576i/576p/720p/1080i/1080p/1080p24/4Kx2K, 3D frame-packing
Input HDMI Audio: Dolby Digital, Dolby Digital Plus, DTS, AAC, up to 5.1ch/192kHz or 7.1ch/96kHz PCM.
HDMI Video: 480i/480p/576i/576p/720p/1080i/1080p/1080p24/1080p25/1080p30, 3D frame-packing 720p/1080p24.
MHL Audio: Dolby Digital, Dolby Digital Plus, DTS, up to 5.1ch/192kHz PCM.
MHL Video: 480i/480p/576i/576p/720p/1080i/1080p24/1080p25/1080p30, 3D frame-packing
USB Audio: up to 2ch/192kHz PCM, 2ch DSD 2.8224MHz/5.6448MHz
Coaxial/Optical Audio: Dolby Digital, DTS, AAC, up to 2ch/96kHz PCM.
Analog Audio Characteristics** Frequency Response: (RCA) 20Hz – 20kHz: ± 0.2dB, 20Hz – 96kHz: -1.5dB. (XLR) 20Hz –
20kHz: ± 0.3dB, 20Hz 96kHz: -1.5dB
Signal-to-Noise Ratio: >130dB (A-weighted, auto-mute), >115dB (A-weighted, no auto-mute)
THD+N: <0.0003% or -110dB (1kHz at 48k/24b, 0dBFS, 20kHz LPF), <0.0017% or -96dB
(1kHz at 44.1k/16b, 0dBFS, 20kHz LPF)
Output Level: 2.1 Vrms (RCA) or 4.2 Vrms (XLR) at 0dBFS
Dynamic Range: >110dBV
Channel Separation: >110dB
Characteristics** Frequency Response: 20Hz – 20kHz: ±0.3dB into 300 Ω
Signal-to-Noise Ratio: >98dB into 300 Ω (A-weighted, no auto-mute)
THD+N: <0.001% or -100dB into 300 Ω (1kHz at 48k/24b, 0dBFS, 20kHz LPF)
Output Power (per channel): 17mW into 600 Ω, 34mW into 300 Ω, 63mW into 150 Ω, 77mW into 120 Ω, 120mW into 60 Ω, 187mW into 32 Ω (1kHz at 0dBFS)
Dynamic Range: >110dB
Channel separation: >90dB
General Specification Power Supply: ~115V/230V, 50/60Hz AC
Power Consumption: 55W (Standby: 0.5W in Energy Efficient Mode)
Dimensions: 16.8 x 12.2 x 4.8 inches (430mm x 311mm x 123mm)
Mass: 17.3 lbs (7.9kg)
Operating Temperature 41°F - 95°F
5°C - 35°C
Operating Humidity 15% - 75%
Compatibility with user-encoded contents or user-created discs is on a best effort basis with no guarantee due to the variation of media, software and techniques used.
4K Up-scaling, True 24p Video!!
Plays normal and 3-D movies!
Works on any TV in the World! No need to use special TVs or buy extra equipment like a Video Converter!
Region Free to play any DVD from any Country!
Region Free Blu Ray to play movies from Regions A, B and C!
Lifetime Region Free Warranty!
World Wide Dual Voltage!
