NEVO 1037 NC-50 1037 CONNECT INTELLIGENT BRIDGE 2 WAY RF ADDR 110 VOLTS FOR USA USE ONLY

6 addressable 3.5mm multi-purpose

ports capable of IR, sensing, or RS-232

Reliable and robust 2-way RF (Z-Wave)

Simple programming and set-up with

NevoStudio Pro software

4 front panel IR blasters for a 180 degree field of view

Feedback LEDs to show individual

port activity

Output Support: IR and Serial

(1-way RS-232)

Input Support: Voltage and

Video Sensing for seamless macro execution

Adjustable IR output level

Firmware upgradeable via USB

RF antenna extender to enable

optimal antenna placement

Industry standard 3.5mm IR ports

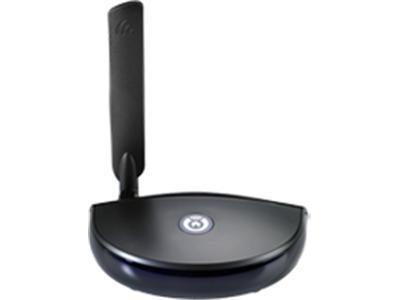

NevoConnect NC-50

Power Supply

Adjustable/removable antenna

Gain complete control of components that are in another room or hidden inside cabinets away from view. NevoConnect NC-50 is an intelligent bridge enabling total control with Nevo Q50.

All Features

Communication 2 way RF (Z-Wave)6 addressable, programmable rear panel ports, 3.5 mm

Each capable of:

IR output

Serial output, 1-way

Sensing input, voltage and video

Ports

Internal IR 4 front panel IR blasters with 180 degree field of view

Housing Painted ABS

Lens Polycarbonate

Mounting Wallmount or desktop

Power Supply 9VDC 500mA

Dimensions 6.3 x 3.7 x 1.6 inches (L x W x H)

160 x 93 x 41 mm (L x W x H)

Weight 0.4 lbs / 6.4 Oz / 181 g

FCC, CE, C-TICK, RoHS, IC, Z-Wave

Model no. North America 1037

Europe 1050

Australia 1050-0301

RF Frequency North America 908.42 MHz

Europe 868.42 MHz

Australia 921.42 MHz
