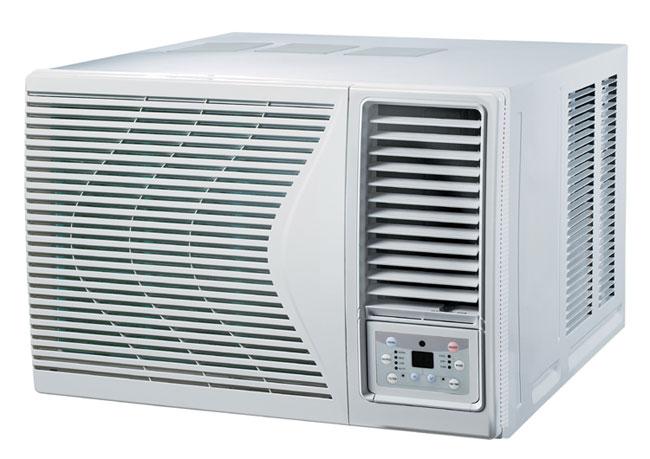

MULTISTAR MS12HCMER WINDOW AIR CONDITIONERS 230VOLT / 50HZ

Technical Specification                                   MS12HCMER

 Function                                                             Cooling / Heating

 Voltage                                                               230V

 Hertz                                                                    50

 Total Capacity                               ((W/Btu/h))

 Cooling                                                                3800 Watts

 Heating                                                               3500 Watts

 Refrigerant (kg)                                                  R410a

 Power Input (W)

 Cooling                                                               1260

 Heating                                                               1025

 Rated Input (W)                                                 1800

 Cooling Power Current (A)                                 5.5

 Heating Power Current (A)                                4.5

 Rated Current (A)                                                9.1

 EER(W/W)                                                            3.02

 Air Flow Volume (m3/h) (H/M/L)**                 (-/730/680/630/-)

 Dehumidifying Volume (l/h)                            1.5

 Indoor Side

 Fan Type                                                                 Centrifugal

 Diameter-Length (mm)                                        (205x110)

 Evaporator                                                              Aluminum fin-copper tube

 Pipe Diameter (mm)                                             φ 7

Row-Fin Gap                                                            2-1.3

 Output of Swing Motor (W)                                  4

 Fuse (A)                                                                   3.15

 Sound Pressure Level dB (A) (H/M/L)                 (-/53/51/49/-)

 Sound Power Level dB (A) (H/M/L )***               (-/63/61/59/-)

Outdoor Side

 Compressor Type                                                   Rotary

 L.R.A. (A)                                                                   26

 Compressor RLA (A)                                                5.8

 Compressor Power Input(W)                               1220

 Throttling Method                                                 Capillary

 Ambient temp (cooling)                                       18ºC ~ 43 ºC

 Ambient temp (heating)                                     ≤35 ºC

 Condenser                                                             Aluminum fin-copper tube

Pipe Diameter (mm)                                           φ 7

 Rows-Fins Gap(mm)                                          2-1.3

 Fan Type                                                              Axial Flow

 Fan Diameter (mm)                                           396

 Sound Pressure Level dB (A) (H/M/L)            (-61/59/57/-)

 Sound Power Level dB (A)  (H/M/L)                (-/71/69/67/-)

 Defrosting Method                                            Automatic Defrosting

 Climate Type                                                       T1

 Isolation                                                              I

Moisture Protection                                           IP24

 Permissible Excessive Operating Pressure for the Discharge Side (MPa)                                3.0

 Permissible Excessive Operating Pressure for the Suction Side (MPa)                                     1.2

 Dimension & Weight

 Unit Dimension (W/H/D)( mm)                       660X428X700

 Unit weight kg /lb                                              57 kg / 125.40Lb.

 Gross weight kg /lb                                            63 kg / 139Lb.

This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
