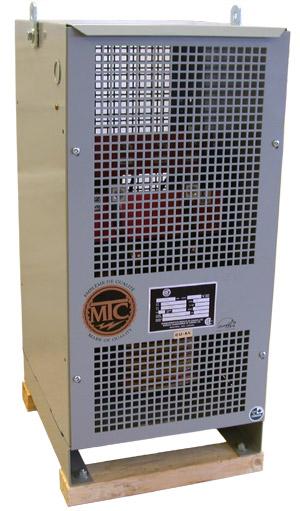

MS25G8 25,000 WATT STEP UP / DOWN TRANSFORMER

The MS25G8 model transformer is built for commercial use. Whenever there are heavy appliances working for commercial purposes, there is the need for such a kind of transformer. This is a single phase transformer. This means, it has a primary winding and a secondary winding. These windings are made of copper. If there is a sudden electrical surge, then this transformer can convert 220 volts to 110 volts or vice versa. Further it is a very efficient in terms of energy consumption as it gives maximum output by consuming only a minimal amount of electricity. This is a boon for those in the commercial use of appliances.

Features

MS25G8 25,000Watt Step Up / Down Transformer

This voltage transformer can only be used in 110 Volt and 220 volt countries. It will convert from 220/230/240 volt to 120 volt and vice versa

Features

  Single Phase

  150°C Temp Rise

  Primary: 220/230/240 Volt

  Secondary: 120 Volt

  100% Copper

  Energy Efficient

  Imp: 4.8%

  Hard Wire Type

Specifications

Capacity:                        25,000 watts

Input:                             120/220/230/240 Volt

Output:                           120/220/230/240 Volt

Dim WxLxH:                    13.25 x 28.75 x 17.3 in

Dimensions (W x H x D)   13.5 x 17.3 x 28.75 in.

Weight                            235 lbs.
