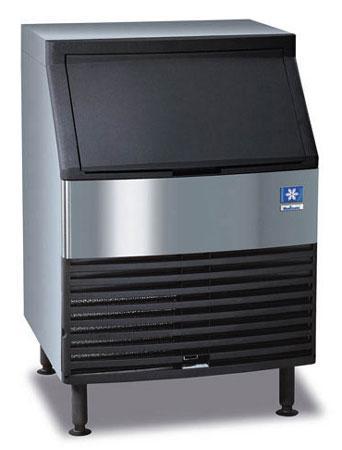

MANITOWOC MQR0131W-INT COMMERCIAL ICE MAKER FOR 208-230V, 60HZ WATER COOLED

5

Slide up and in bin door tucks under ice machine top cover. Patented ice damper maximizes ice storage capacity

Product Code: MA-MQR0131W-Int   Product ID: 24897
Product sold by: samstores.com

$ 3199

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!



• Up to 147 lbs. (67 kgs.) daily ice production

• CEE Tier 1 energy and water efficiency rating

• Only 26" (66.04 cm) wide,26.50" (67.31 cm) deep,and 38.50" (82.55 cm) high on 6" (15.24 cm) legs

• 80 lbs. (36.6 kgs.) ice storage capacity

Slide up and in bin door tucks under ice machine top cover. Patented ice damper maximizes ice storage capacity

• Stainless steel exterior with the fit and finish of an appliance

• Patented cleaning and sanitizing technology

• R-404A CFC-free refrigerant

• Warranty

5-year parts and 5-year labor coverage on ice machine evaporator

5-year parts and 3-year labor coverage on ice machine compressor

3-year parts-and-labor coverage on all other components

Ice Machine Electric

115/60/1.(208-230/60/1 and 230/50/1 also available.) 115/60/1ice machines are factory pre-wired with a 6' (180 cm) power cord and NEMA 5-15P-plug configuration. 208-230/60/1

ice machines are factory pre-wired with a 6' (180cm) power cord only,no plug is supplied.

Total Amps:

Q-130: 115/60/1:Air-cooled: 7.0 amps / Water-cooled: 6.3 amps

208-230/60/1:Air-cooled: 3.1amps / Water-cooled: 2.6 amps



Q-210: 115/60/1:Air-cooled: 6.5 amps / Water-cooled:6.1amps

208-230/60/1:Air-cooled: 3.6 amps / Water-cooled: 3.1amps       (82.55 cm)



Q-270: 115/60/1:Air-cooled: 10.7amps. / Water-cooled:9.9 amps. 208-230/60/1:Air-cooled: 5.2 amps / Water-cooled: 4.7 amps

Maximum fuse size: Air and Water-cooled: 15amps

HACR-type circuit breakers can be used in place of fuses.

24- HO UR     P ROD UC TIO N                         lbs. kgs.



AIR COOLED UNIT



WA TER COOLED UNIT



air temp



water temp



air temp



water temp



?F

?C



50?          70?         90?

10?          21?         32?



?F

?C



50?         70?         90?

10?         21?         32?



70? 21? 80? 27? 90? 32?



135       115      100 61         52        45 120       105       90 54         48        41 105        90        80 48         41        36



70? 21? 80? 27? 90? 32?



130       110       90 59        50        41 125       105       85 57        48        39 120       110       80 54        50        36





Specifications

*Air cooled:

1 Good-Uses less water- It is cooled by a fan

2 Good-Better for environment

3 Bad-Has a tendency to heat the room where it is located more than water cooled

4 Bad-Little noisier than water cooled

5 Good-Most popular

*Water cooled:

1 Good-Quieter than air cooled

2 Good-More energy efficient

3 Good-Does not raise room temperature

4 Bad-Cost for water cooled is in some cases higher

5 Bad-A lot more water is used which some consider to be a waste

6 Bad-Water bill is higher

7 Bad-Water filtration systems have to be changed more frequently because of water usage

These are the good and the bad for both. It's simply the way in which the systems are cooled

Note:

This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlet.
