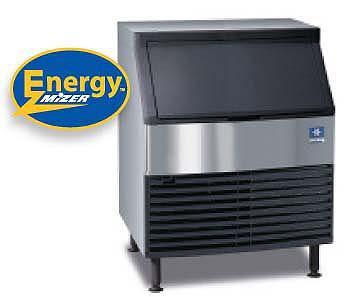

MANITOWOC MAQD0272A-60 COMMERCIAL ICE MAKER FOR 220 VOLT/ 60 HZ

• Up to 290 lbs. (132 kgs.) daily ice production

• Up to CEE Tier 2 energy and water use rating

• Only 30" (76.2 cm) wide, 28.16" (71.52 cm) deep, and 38.50" (97.79 cm) high on 6" (15.24 cm) legs

• 100 lb. (45.45 kg) ice storage capacity

• Slide up and in bin door tucks under ice machine top cover. Patented ice damper maximizes ice storage capacity

• Stainless steel exterior with the fit and finish of an appliance

• Patented cleaning and sanitizing technology

• R-404A CFC-free refrigerant

• Warranty

5-year parts and 5-year labor coverage on ice machine evaporator

5-year parts and 3-year labor coverage on ice machine compressor

3-year parts-and-labor coverage on all other components

Model

Ice Shape

Ice Production 24 hours

Power @ 90°/70°

70°Air/50°Water

90°Air/70°Water

kWh/100 lbs.

CEE* Rating

lbs.

kgs.

lbs.

kgs.

QY-0274A

half-dice

280

127

215

98

9.0

Tier 2

QY-0275W

half-dice

290

132

245

111

7.3

Tier1

QD-0272A

dice

280

127

215

98

9.0

Tier 2

QD-0273W

dice

290

132

245

111

7.3

Tier 1

Water usage/100 lbs./45.4 kgs. of Ice

Potable Water: 33.5 gallons, 127 liters · Water-cooled Condenser: 167 gallons, 632 liters

2 4 -HOUR             P ROD UCTI     ON     †

lbs.

kgs.

AIR-C OO LED UNIT

WA TER-COOL ED UNIT

air temp

water temp

air temp

water temp

?F ?C 70? 21? 80? 27? 90?

32?

50?                 70?                90? 10?                 21?                32? 280             245             220 127             111             100 275             240             215 125             109                  98 250             215             190

114                 98                 86

?F ?C 70? 21? 80? 27? 90?

32?

50?                70?                 90? 10?                21?                 32? 290             255             235 132             116             107 285             250             230 130             114             105 280             245             225

127               111                102

Ice Machine Electric

115/60/1. (208-230/60/1 and 230/50/1 also available.) 115/60/1 ice machines are factory pre-wired with a 6' (180cm) power cord and NEMA

5-15P-plug configuration. 208-230/60/1 ice machines are factory pre-wired with a 6' (180 cm) power cord only,no plug is supplied.

Total Amps:

Air-cooled — 8.5 amps. Water-cooled — 7.7 amps.

Maximum fuse size:

Air and Water-cooled — 15amps.

HACR-type circuit breakers can be used in place of fuses.

Specifications

* 220 Volt/ 60 Hz/ Single Ph, Commercial ice maker, Produces up to 280lbs of ice every 24 hours

* Makes dice style cubes

* Built-In Storage Bin capacity of 100 lbs

* Measures 30" wide x 28 1/8" deep x 38 1/2" high on 6" adjustable legs

* Slide up and in bin door tucks under ice machine top cover

* Patented ice damper maximizes ice storage capacity

* Stainless steel exterior with the fit and finish of an appliance

* patented cleaning and sanitizing technology

* R-404A CFC-refrigerant

Difference between AIR COOLED & WATER COOLED

The refrigeration system in ice machines have to be cooled during operations because of the heat that is generated during the mechanical process. These are the two types: Air Cooled or Water Cooled

* Air cooled:

1 Good-Uses less water- It is cooled by a fan

2 Good-Better for environment

3 Bad-Has a tendency to heat the room where it is located more than water cooled

4 Bad-Little noisier than water cooled

5 Good-Most popular

* Water cooled:

1 Good-Quieter than air cooled

2 Good-More energy efficient

3 Good-Does not raise room temperature

4 Bad-Cost for water cooled is in some cases higher

5 Bad-A lot more water is used which some consider to be a waste

6 Bad-Water bill is higher

7 Bad-Water filtration systems have to be changed more frequently because of water usage

These are the good and the bad for both. It's simply the way in which the systems are cooled.

Note:

This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlet.
