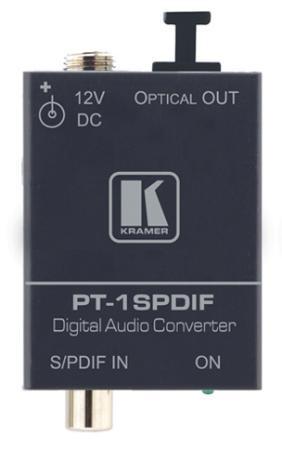

The PT-1SPDIF is a format converter for S/PDIF digital audio signals. It converts an S/PDIF signal to a TOSLINK® optical signal.
S/PDIF Input - RCA connector.
TOSLINK® Output - TOSLINK® connector.
Compact Size - Part of the Kramer TOOLS™ family of compact, high-quality and cost-effective solutions.
INPUT: 1 S/PDIF (digital audio) on an RCA connector.
OUTPUT: 1 Optical (digital audio) on a TOSLINK® connector.
SAMPLING: 32kHz to 192kHz.
POWER SOURCE: 12V DC, 50mA.
DIMENSIONS: 4.27cm x 2.2cm x 5.64cm (1.68" x 0.87" 2.22") W, D, H.
WEIGHT: 0.3kg (0.67lbs) approx.
