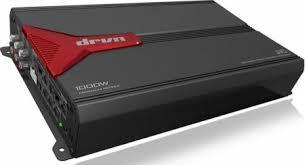

JVC KS-AX3205D 560W RMS 5-CHANNEL CLASS D DRVN SERIES CAR POWER AMPLIFIER 110 VOLTS
KS-AX3205D 560W RMS 5-Channel Class D DRVN Series Car Power Amplifier 110 VOLTS
Product Code: JV-KSAX3205D Product ID: 21397
Product sold by: samstores.com
Availability: In Stock New
Shipping Charges: $18
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
General Features:
DRVN Series 5-Channel Class D Car Amplifier
Channel 1-4 RMS Power Rating:
4 ohms: 50 watts x 4 chan.
2 ohms: 65 watts x 4 chan.
Bridged, 4 ohms: 130 watts x 2 chan.
Subwoofer RMS Power Rating:
4 ohms: 200 watts x 1 chan.
2 ohms: 300 watts x 1 chan.
Max power output: 1000 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
Soft start turn-on
5/4/3/2 or Mono channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Input sensitivity:
Low level: 200mV-5V
High level: 600mV-15V
Variable high-pass filter (50-200 Hz, 12 dB/octave)
Variable low-pass filter (50-200 Hz, 18 dB/octave)
Fixed subsonic filter
CEA-2006 compliant amplifier
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Also found as: KSAX3205D
Dimensions: 13-7/16"W x 7-5/16"D x 2-1/8"H
Authorized Internet Dealer
1-year Manufacturer's Warranty
Power Specifications - Full Range Channels
RMS Power @ 4 ohms 50 watts x 4 channels
RMS Power @ 2 ohms 65 watts x 4 channels
Bridged RMS Power 130 watts x 2 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms 200 watts x 1 channels
RMS Power @ 2 ohms 300 watts x 1 channels
Amplifier Specifications
Amplifier Class D
Number of Channels 5
Total RMS Power Output 560 watts
Maximum Input Gauge Size 1/0 AWG
Minimum Impedance Unbridged 2 ohms
Minimum Impedance Bridged 4 ohms
THD at Rated RMS Power 0.04%
Built-in Crossover Low-pass (LP)
High-pass (HP)
High-Pass Crossover Frequency 50 - 200 Hz
Low-Pass Crossover Frequency 50 - 200 Hz
Signal-to-Noise Ratio 70 dB
Bass Boost 0 - 18 dB
Bass/Gain Remote No
Fan Cooled No
Fuse Rating 30A x 2
CEA-2006 Compliant Yes
Strappable No
Warranty and Return Policy
Return Policy Standard Return Policy
Parts Warranty Duration 1 year
Labor Warranty Duration 1 year
Warranty Provider Manufacturer
110 VOLTS FOR USA USE ONLY
