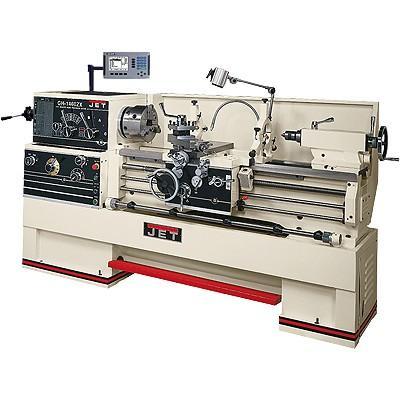

JET 321313 GH-1460ZX LARGE LATHE WITH 300S DRO TAPER 220 VOLTS

A Jet exclusive design, the ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a Jet Lathe that is backed by the industry-leading Jet Two Year Warranty. Uniquely designed exclusively by JET. ISO 9001 certified manufacturer. 3-1/8 Inch bore spindle is supported by two tapered and one ball bearing. Chrome molybdenum headstock gears are hardened, ground and shaved. Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required. Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces. T-slotted compound slide featuring a four-way tool post. One piece cast iron base absorbs vibration allowing heavier cuts. High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground. Removable gap allows up to 23-5/8 Inch diameter work on14 Inch, 25-7/8 Inch on 16 Inch , 27-1/2 Inch on 18 Inch and 29-1/2 Inch on 22 Inch. Five position automatic carriage stop increases productivity. Attractive chrome control levers, dials and knobs complete this impressive package. Tolerance test certificate included. 10 Inch scroll 3-jaw chuck with top reversing jaws. 12 Inch independent 4-jaw chuck. 12 Inchface plate (16 Inchmodels). 16 Inch face plate (18 Inch models). Four-way tool post. Follow rest. Large capacity steady rest. A Jet exclusive design, the ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a Jet Lathe that is backed by the industry-leading Jet Two Year Warranty. Uniquely designed exclusively by Jet. ISO 9001 certified manufacturer. 3-1/8 Inch bore spindle is supported by two tapered and one ball bearing. Chrome molybdenum headstock gears are hardened, ground and shaved. Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required. Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces. T-slotted compound slide featuring a four-way tool post. One piece cast iron base absorbs vibration allowing heavier cuts. High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground. Removable gap allows up to 23-5/8 Inch diameter work on14 Inch, 25-7/8 Inch on 16 Inch , 27-1/2 Inch on 18 Inch and 29-1/2 Inch on 22 Inch. Five position automatic carriage stop increases productivity. Attractive chrome control levers, dials and knobs complete this impressive package. Tolerance test certificate included. 10 Inch scroll 3-jaw chuck with top reversing jaws. 12 Inch independent 4-jaw chuck. 12 Inchface plate (16 Inchmodels). 16 Inch face plate (18 Inch models). Four-way tool post. Follow rest. Large capacity steady rest.

Specifications

• Style (Type): Engine - Large Spindle Bore
• Number of Spindle Speeds : 12
• Distance Between Centers (In.) : 60
• Swing Over Bed (In.) : 14
• Spindle Bore (In.) : 39508
• Range of Spindle Speeds (RPM) : 25 - 1,800
• Swing Through Gap (In.) : 23-5/8
• Spindle Taper with Sleeve : MT-7 (MT-5)
• Range of Longitudinal Feeds (IPR) : .0015 - .0913
• Taper in Tailstock Spindle : MT-4
• Number of Metric Threads : 24
• Prewired (V.) : 230
• Width of Bed (In.) : 13-3/8
• Motor (HP) : 37438
• Range of Inch Threads (TPI) : 1-5/8 - 72
• Range of Cross Feeds (IPR) : .0006 - .0365
• Steady Rest Capacity (In.) : 39149
• Range of Metric Threads : .05 - 20
• Cross Slide Travel (In.) : 9
• Spindle Mount : D1-8
• Accessories : Taper Attachment & Collet Closer
• Number of Inch Threads : 61
• Overall Dimensions (L x W x H) (In.) : 116 x 44 x 66
• Digital Readout : ACU-RITE 300S
• Carriage Travel (In.) : 55
• Weight (Lbs.) : 5380
• Swing Over Cross Slide (In.) : 39634
• Max Tool Size (In.) : 1 x 1
• Compound Slide Travel (In.) : 39569
• Length of Gap (In.) : 38322
• Tailstock Spindle Travel (In.) : 5
• Drive : Geared Head
• Number of Longitudinal and Cross Feed Rates : 12
• Follow Rest Capacity (In.) : 1/2 - 3-1/2
