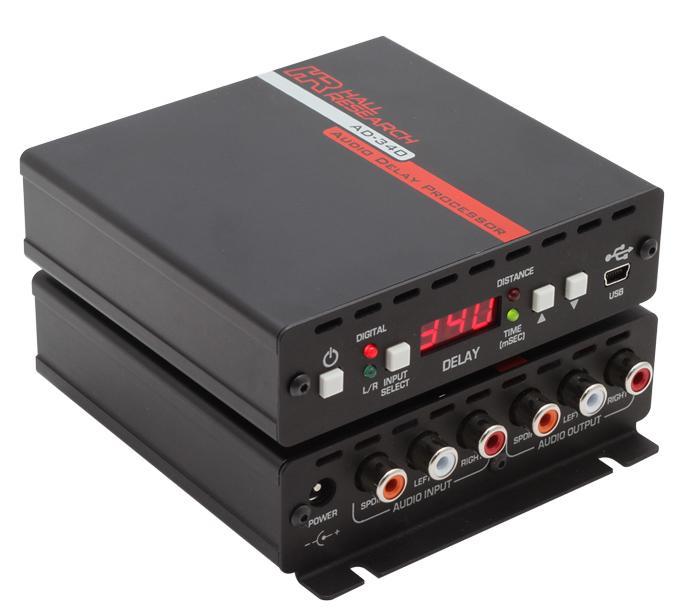

The AD-340 is an audio delay processor with universal analog (L/R) and digital (SPDIF) inputs and outputs. Both outputs are simultaneously active, enabling conversion between analog stereo audio to LPCM or vice versa. Delay time can be specified in milliseconds, frames, or distance depending on the application. Analog inputs provide +/- 24 db of gain for direct connection of low level mic as well as handling 2vrms line-level signals. The AD-340's digital I/O support 2-channel linear PCM, 5.1 Channel Dolby Digital, and DTS Surround encoded bitstreams at any sampling rate from 32KHz to 96KHz.
Product Code: AD-340 Product ID: 21164
Product sold by: samstores.com
Availability: In Stock New
The AD-340 is an audio delay processor with universal analog (L/R) and digital (SPDIF) inputs and outputs. Both outputs are simultaneously active, enabling conversion between analog stereo audio to LPCM or vice versa. Delay time can be specified in milliseconds, frames, or distance depending on the application. Analog inputs provide +/- 24 db of gain for direct connection of low level mic as well as handling 2vrms line-level signals. The AD-340's digital I/O support 2-channel linear PCM, 5.1 Channel Dolby Digital, and DTS Surround encoded bitstreams at any sampling rate from 32KHz to 96KHz.
For advanced control, the AD-340 connects to a PC via USB (cable included). No special USB drivers are needed and Hall Research provides a free software configuration utility. Advanced settings include:
Selection of Sample Rate for Analog input
Display of Sample Rate and Audio Format (LPCM, Dolby, DTS, DTS-CD)
Adjustment for: mSec, Feet, Meters, Frames (both 50 and 60 Hz)
Temperature compensation of delay needed for a given distance
SPDIF input phase lock, and integrity indication
Choice for Auto-mute of Analog output when changes are being made
Gain control of analog input and outputs
Power status display and control (On / Standby)
Ability to connect and control multiple devices from one PC (with user specified names stored in each)
Front Panel Lock control so adjustments cannot be changed inadvertently
Features:
Delay analog or digital audio in milliseconds, frames, or distance
Analog to Digital and Digital to Analog conversion
Supports CD, DVD, and Blu-Ray sample rates at 32kHz, 44.1kHz, 48 kHz and 96kHz
Supports 2-channel linear PCM digital audio and 5.1 Channel Dolby Digital and DTS encoded bitstreams
Delay up to 510 ms
Delay calculation based on distance with optional automatic temperature compensation
Stereo Analog RCA inputs are ground loop isolated to prevent spurious buzz or hum
USB interface for advanced control
