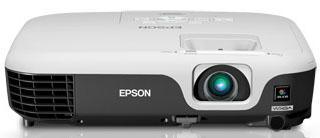

EPSON VS315W WIDESCREEN WXGA 3LCD PROJECTOR 100-240 VOLT/ 50-60 HZ

Technical Specifications

Projection System           3LCD, 3-chip technology

Projection Method         Front / rear / ceiling mount

Driving Method                Poly-silicon TFT Active Matrix

Pixel Number    1,024,000 (1280 x 800) x 3

Color Brightness (Color Light Output)      2600 lumens1

White Brightness (White Light Output) 2600 lumens1

Aspect Ratio       16:10

Native Resolution            1200 x 800 (WXGA)

Resize   640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA) ,1152 x 864 (SXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+)

Lamp Type          E-TORL™ 200 W UHE

Lamp Life

ECO mode           Up to 5000 hours2

Normal mode    Up to 4000 hours2

Throw Ratio Range          1.30 – 1.56

Size (projected distance)              33″ – 318″ (0.84 – 8.08 m)

Keystone Correction

Automatic           Vertical: ±30 degrees

Contrast Ratio   Up to 3000:1

Color Reproduction         16.77 million colors

Projection Lens

Type      Manual (optical) zoom

Focal Length       1.58 – 1.72

Zoom Ratio         Digital zoom 1.0 – 1.2

Display Performance

NTSC     480 lines

PAL        560 line    (Depends on observation of the multi-burst pattern)

Input Signal        NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

Interfaces

Computer / Component video   D-sub 15 pin x 1

S-video                 Mini DIN x 1

Composite video              RCA x 1

USB Connector                 Type B x 1 (USB display and mouse/ Keyboard control)

Speaker               1 W (mono)

Operating Temperature                41° to 95° F (5° to 35° C)

Power Supply Voltage   100 – 240 V ±10%, 50/60 Hz

Power Consumption      ECO mode: 234 W

Normal mode: 283 W

Fan Noise

ECO mode           29 dB

Normal mode    37 dB

Security                Kensington®-style lock provision

Security anchor bar

Dimensions & Weight

Including feet    11.6″ x 9.0″ x 3.1″ (W x D x H)

Excluding feet   11.6″ x 9.0″ x 3.0″ (W x D x H)

Weight                 5.1 Lb.

Remote Control

Features              Source search selection, power, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions

Operating Angle

Right / Left          ±30 degrees

Upper / Lower ±15 degrees

Operating Distance         26 ft (8 m)
