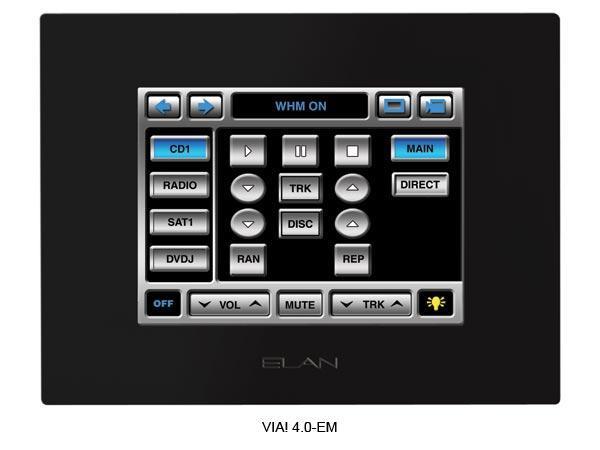

ELAN VIA4 0EM 4 INCH IN-WALL COLOR TOUCH PANEL/VIDEO MONITOR 110 VOLTS FOR USA USE ONLY

The VIA!4.0-EM has all the features that made the time-tested, award-winning VIA!6.4 one of the best-selling in-wall touch panels on the market today, including one-touch access to your audio and video, lighting, temperature and security systems, real-time video monitoring, customizable layouts, room-matching screen motifs and wall frames, ease of programming, and more!

Depending upon your individual needs and space requirements, this sleek 4-inch full-color touch panel is the perfect solution. Its smaller size and cost give you the opportunity to have full touch screen control in spaces where the larger VIA!s either will not fit or where price is a consideration. Stepping up from a keypad to a new VIA!4.0-EM also means that viewing everything from security cameras to the morning news is now available just about anywhere.

The VIA!4.0-EM’s slim look, Standard and Euro-style wall frames, and seven different color options it the perfect companion for any room in the house. The VIA!4.0-EM’s small size, slim look, and seven different color options it the perfect companion for any room in the house.

4-inch color LCD touch panel

Full-color video monitor / in-wall TV

Controls up to 20 audio / video components, lighting, security, temperature & more

Customizable graphics & motifs

Non-volatile flash memory

Easy to program using VIA!TOOLS Setup Software

Compatible with every ELAN multi-room controller

Universal controller for any system

System and Local RJ45 ports

Quick-connect terminals for IR In / Out, Sense & +12VDC

Easy retrofit installation

Optional VIA40EMBKT Rough-In Brackets available

Wall frames available in White, Light Almond, Almond, Ivory, Brown, Black & Satin Chrome

Ships standard w / White frame

Connections System Port (RJ-45), Local Port (RJ-45), Interface Port (5-position Screw Terminal), Power (2-Position Screw Terminal), Video IN ("F" Connector), Video Loop OUT ("F" Connector)

Wiring Requirements Cat-5 (data), RG-6 or RG-59 coaxial cable (composite video)

min. 18 AWG 2-conductor twisted-pair (power)

Display 4" Diagonal Color TFT LCD

Resolution 960 (W) x 234 (H)

Signal NTSC/PAL (auto-switch) Composite Video

Viewing Angles 10º Up, 30º Down, 45º Left / Right from Center

Power 16VDC / 500mA

Frame Dimensions (in.) 5-1/4 W x 3-7/8 H x 1/4 D

(mm) 133 W x 98 H x 6 D

Cutout Dimensions Approx. (in.) 4-3/8 W x 3-3/8 H, Approx.

(mm) 111 W x 86 H

(Use provided cut-out template for exact dimensions)

Weight 1 lb./0.45kg

CE & FCC approved, C-tick listed
