The SS1 is an RS-232, IR, sense and relay controller all rolled into one powerful package. With its built-in library of RS-232 serial drivers, the SS1 has the capability to interface with many of the top lighting, security and temperature control systems. Its powerful IR engine allows for intelligent, independent control of all your A/V components. Multiple sense inputs and relay outputs can automatically raise, lower, open and close all your motorized devices at the touch of a single button.
The SS1 integrates seamlessly with all ELAN multi-room controllers, music/video source components and user interfaces, providing you with one-touch entertainment throughout the house. It is also the companion component to the N800 handheld controller, enabling its WiFi system control capabilities.

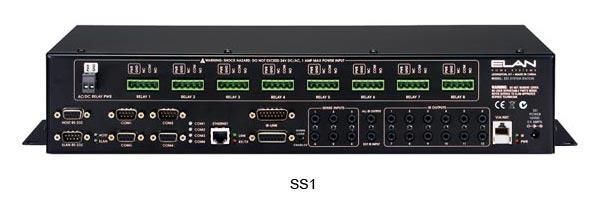

Meet the SS1 System Station from ELAN – a single component that ties all your house-wide systems and electronics together, and allows you to control them all from ELAN’s award-winning line of VIA!® Touch Panels.
RS-232, IR, Sense & Relay controller all in one
Companion component for the ELAN Wireless Touch Panels
An ideal, do-it-all Home Theater controller
System-wide conditional macros
Controls serial devices with external IR commands
Advanced if/then/else IR engine
12 steerable IR output ports, plus "ALL" port & external IR input
6 Sense Input ports
8 configurable Relay Outputs
4 RS-232 COM ports plus RS-232 Host & ELAN ports
RJ-45 VIA!NET & Ethernet port
Independent LED activity indicators for COM, Ethernet, Host & ELAN ports
Easy integration with S12, S8.6AV/AVP, V883 & Z•880
Power Requirements 12VDC @ 1.2mA nominal, power supply (incl.)
IR Outputs (x12)/ALL Port 3.5 mm mono jack, 100mA
EXT IR Input 3.5 mm mono jack, 12VDC active high
Relay Type NO / NC closed-contact relay
Relay Contact Rating 1A @ 24VDC
DC Relay Power 24VDC max.
Sense Inputs x6
Sense Input Type Closed-contact
Sense Input Connector 3.5 mm stereo jack
Sense Input Power 5VDC
COM Ports (x4) RS-232 DB-9 connectors, 110-115.2k Baud
HOST Port RS-232 DB-9 connector, 110-115.2k Baud
ELAN Port RS-232 DB-9 connector, 19.2k Baud
IR Link Ports (x2) DB-15 connectors
VIA!NET Port ELAN standard RJ-45
Ethernet Port IA568A standard RJ-45, 10 BaseT
Dimensions (in.) 17 W x 2-1/4 H x 12-1/2 D, (mm) 432 W x 89 H x 140
