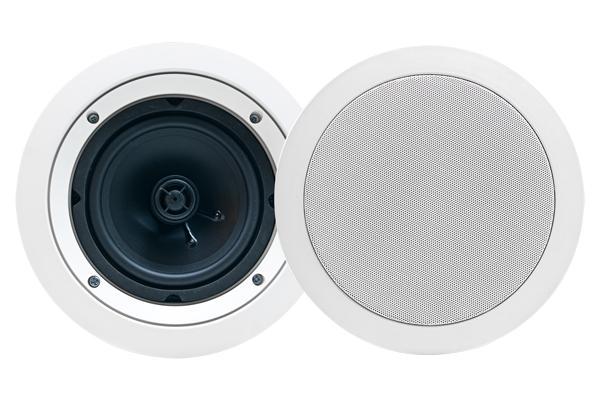

The Image in-ceiling speakers are designed to produce an incredible sound pressure level with only a mere 5 watts. Most multi-zone amplifiers often have less than 35 watts of power. The efficient Image speakers can produce an audiophile performance with ease, making them to solution to your multi-zone application.
The cone of Image in-ceiling series is made of a patented fiber impregnated poly which provides a stiff cone with only half the mass. Each speaker is equipped with a 20mm silk dome tweeter with a rotating mount, allowing the tweeter to be aimed at the direction of the listeners. In addition to the push terminal feature, the Image in-ceiling speakers also have a poly switch to prevent them from getting over powered.
Just as its in-wall counterpart, the Image in-ceiling spekaers have rust proof grills and paintable speaker frames.
High Sensitivity & Power Handling
Paintable Rust-proof Aluminum Grilles for superior protection and job flexibility
Turn -N- Lock Installation for safe, efficient and professional installs
PistonMax Woofer Design for more accurate mid-bass with out distortion
Poly Injection Composite Drivers for smooth widerange response with low distortion
Three Models to choose from: CM-500, CM-600 and CM-800
Long Life, Moisture Resistant Materials including butyl rubber surrounds and poly injection cones for safe use in kitchens, bathrooms and atriums
Image Style easily integrates with Image in-wall speakers and even Earthquake IQ speakers
3/4" neodymium magnet dome tweeter with "On-Axis" - 380 degree positioning for better staging and imaging
Long excursion bumped back plate and thick gauss magnet.
Easy install "Turn-N-Lock" mechanism.
Easy connect spring loaded binding posts.
Poly switch for tweeter protection
Elaborate filter network:
High pass 12dB/Oct. @ 2kHz
Low pass 12dB/Oct. @ 2kHz
Woofer: 6 1/2" (165mm) Low mass poly-mica
Tweeter: 1" (25mm) adjustable silk dome
RMS Power Rating: 20-100Watts
Frequency Response: 60 - 21.000Hz
Nominal Impedance: 8-Ohm
Finish: White / Paintable
