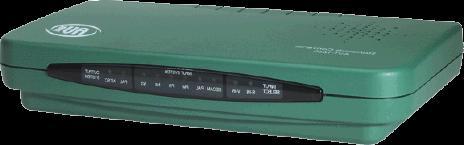

DVC-1660 DIGITAL VIDEO CONVERTER

Universal Digital Video Converter1

CONVERT PAL NTSC SECAM To PAL NTSC

DVC-1660

Versatile and compatible with all video equipment. Increased memory to 16.6MB. PAL-60 out (auto).

USE THIS BOX WITH OUR DVD
RECORDERS TO RECORD IN PAL !
OR WITH OUR VCRs TO RECORD
PAL IN NTSC !

IMPORTANT!
Unlike similar products we guarantee that this item is compatible with all VCRs, DVD players and recorders, camcorders, cable boxes and satellite receivers. This unit has been modified to avoid DVD player/recorder regions re-locking.

DVC-1660 Digital Standards Converter allows you to freely convert between various worldwide television standards. The input system can be NTSC 3.58, NTSC 4.43, PAL, PAL-M, PAL-N or SECAM and the output system can be either NTSC or PAL.

Specially designed to work with TV Cable Boxes and Satellite Receivers!

The DVC-1660 provides inputs and outputs for Composite Video signals. This high quality digital device converts between 50 and 60 Field Rates and between 525 and 625 Line Rates.

Convert signals from

• PAL & SECAM to NTSC
• NTSC to PAL

Output is selectable between

• NTSC 3.58 or 4.43 (USA, Canada, Mexico and Japan)
• PAL (For PAL B/G, D/K, I - SECAM D/K, B/G, K1 Countries)
• PAL M or PAL N (for Argentina, Brazil and other parts of South America)

Features:

• Full Digital Conversion Technology
• Built-in color Bar Generator
• Input Video: Composite or S-Video
• Input Standards: NTSC 3.58, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM
• Automatic Input Standard Detection
• Output Video: Composite or S-Video
• Output Standards: NTSC 3.58, PAL
• Sampling Frequency: Y=13.5MHz, R-Y=6.75MHz, B-Y=6.75MHz
• Digital Code Bit: R=8 bits, G=8 bits, B=8 bits
• Line Conversion: 525 to 625, 625 to 525
• Field Conversion: 60 to 50, 50 to 60
• Size: 1.8" High x 9.3" Wide x 5.1" Deep (45mm x 236mm x 130mm)
• Weight: 14 ounces (0.4kg)
• 115VAC to 9VDC Power Adapter Included
• One-Year Limited Warranty

1Separate TV tuner like a VCR, Cable Box or Satellite Receiver required.
2Please note that, due to copyright legislation, it is illegal to commercially duplicate copyright protected material. We do not endorse the use of this item for any commercial activity.
