Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool. New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49º left and right. Easy to use miter and bevel controls making the tool fast and simple to change from one set up to another. Cam action miter lock function makes miter setting faster allowing the user to quickly adjust angles between 0º - 50º left and 0º - 60º right.
Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm. XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required. Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool. New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49º left and right. Easy to use miter and bevel controls making the tool fast and simple to change from one set up to another. Cam action miter lock function makes miter setting faster and easier allowing the user to quickly adjust angles between 0º - 50º left and 0º - 60º right. Long life Accuracy in Table and Fence Design. The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles. Linear horizontal rails utilize bronze guides to provide maximum precision when cutting materials up to 345 mm wide. Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the job site. Outstanding dust control and deflection away from cutting area. Electronic speed control for adjusting cutting speed when cutting materials other than wood. The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications.
Power Input: 1675 Watts
Power Output: 960 Watts
Blade Speed: 1900 - 3800 rpm
Blade Diameter: 305 mm
Blade Bore: 30 mm
Weight: 24.8 kg
Depth: 470 mm
Length: 770 mm
Height: 396 mm
Max. Depth of Cut [Saws]: 170 mm
Bevel Capacity: 49/49°
Miter Capacity [right/left]: 60/50°
Cutting Capacity at 90º/90º (W x H): 345 x 76 mm
Cutting Capacity at 45º/90º (W x H): 345 x 44 mm
Cutting Capacity at 90º/45º (W x H): 244 x 76 mm
Max. Cutting Capacity at 45°/45°: 212 x 76 mm

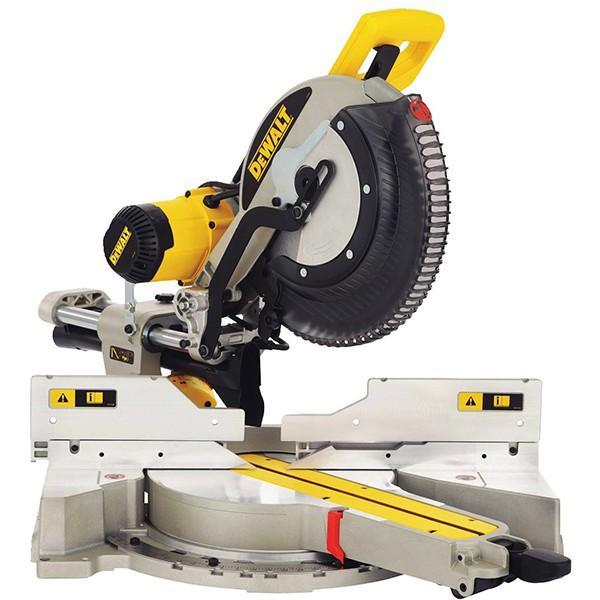

DWS780-QS 220 Volt 305mm Double Bevel Sliding Miter Saw, high quality 60 tooth blade, blade spanner, dust bag and material clamp.
Grit - -
Chuck Type - -
Drive Type 30mm Arbor
Hammering Mode - -
Hp Range - -
Includes - -
Power Source Corded
Size Range - -
Use For Material - -
This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
