DENON AVR-2313 220 / 240 VOLT AV RECEIVER NOT FOR USA

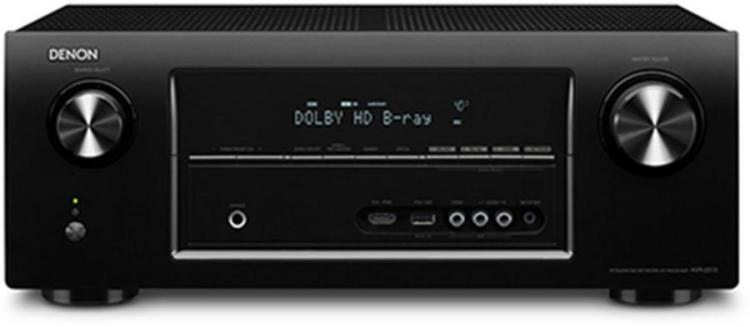

Denon AVR-2313 220 Volt AV Receiver

The AVR-2313 offers consumers unprecedented networking capabilities, flexibility, performance and reliability with a strong emphasises on “right out of the box” ease of use. The receiver comes with a host of next-generation lifestyle features geared towards today’s “networked home”, as well as a sleek new Denon cosmetic with a newly designed front panel and thinner profile. Most remarkably, he has AirPlay already built-in for the most convenient music streaming from iTunes libraries and Apple’s iPhone/iPad/iPod touch. With the AVR-2313 it is easy to enjoy a wide variety of on-line digital content. The high-performance I/P converter and 4k scaler to give you optimum picture quality. The AVR-2313 has been specifically designed to give you the ultimate experience in today’s state-of-the-art home entertainment.

    Supports 4K video signals (video upscaling, video passthrough, GUI overlay)

    Support new “Denon Remote App” to simplify operation by Android & iOS tablet/smartphone

    Convenient HDMI port on the front for connecting a camcorder or other device

    Front display with large, easy-to-read characters

    Fully discrete, identical quality and power for all 7 channels (105W x 7ch)

    Stable power supply for high-quality sound and picture playback

    Featuring 3D pass-through technology

    Minimum Signal Path for clear audio and video signal

    High-performance 192kHz/24-bit D/A converters for all channels

    Digitally transmitted Play function for iPod and iPhone (via USB) for best sound quality

    Denon’s proprietary Compressed Audio Restorer, to restore sound quality from compressed music sources

    Audyssey DSX

    Dolby Pro Logic IIz

Connectivity & Future-ready Expandability

    Supports HDMI with 4K, 3D, Audio Return Channel, Deep Color, x.v.Color, Auto Lipsync and HDMI control function

    6 x HDMI in (1 on front panel) / 2 x HDMI out (Simultaneous)

    Power Amp Assign function, for versatility in using the AVR-2313 for different purposes

    Front panel USB input

    Multi room audio (2 zones 2 sources)

Denon AVR-2313 220 Volt AV Receiver Specifications

Power amplifier section

    Rated output: *THD figures are power amp stage values.

    Front L/R

    105 W + 105 W (8 ohms, 20 Hz - 20 kHz, THD 0.08 %)

    135 W + 135 W (6 ohms, 1 kHz, THD 0.7%)

Center

    105 W(8 ohms, 20 Hz - 20 kHz, THD 0.08 %)

    135 W(6 ohms, 1 kHz, THD 0.7%)

Surround L/R

105 W + 105 W(8 ohms, 20 Hz - 20 kHz, THD 0.08 %)

135 W + 135 W(6 ohms, 1 kHz, THD 0.7%)

Surround Back L/R

    105 W + 105 W(8 ohms, 20 Hz - 20 kHz, THD 0.08 %)

    135 W + 135 W(6 ohms, 1 kHz, THD 0.7%)

Maximum output power

    170W(6ohm 1kHz, 1 Channel Driven, IEC)

Preamplifier section

    Input sensitivity/impedance: 200 mV / 47 kohms

    Frequency response:10 Hz - 100 kHz - +1, –3 dB (DIRECT mode)

    S/N Ratio:100 dB (IHF-A weighted, DIRECT mode)

    FM section: Tuning frequency range 87.5 - 108 MHz

General

    Power supply:AC 230 V, 50/60 Hz

    Power consumption:600 W(Standby 0.1 W, CEC standby 0.5 W)

    Dimensions (W x H x D):17 3/32" x 6 37/64" x 17 3/32" 434 x 166 x 379 mm

    Weight:24 lbs, 11.0 kg
