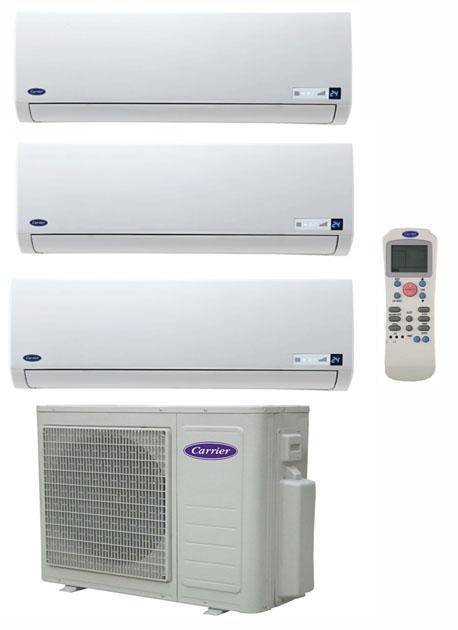

CARRIER 38QCT27/ 42QCP09 INVERTER MULTI-SPLIT AIR CONDITIONER FOR 220-240V 50HZ

* 220-240 Volt /50 Hz, Inverter Multi-split Air Conditioner

 * Saves Power and reduced temperature fluctuation

 * This will not only keep you comfortable, they will also save you money over the long run

 * 27000 BTU Capacity with 3 Evaporator (9000+9000+9000)

 * R410A ENVIRONMENTALLY FRIENDLY REFRIGERANT

 * “A/A” Energy Efficiency Class Energy Saving

 * Heat (Heat Pump/ Cool)

 * 2.6 KW Cooling Capacity

 * 2.2 kW Heat Productivity

 * Compact and sleek design

 * Inverter Compressors

 * Low noise and precise temperature control

 * Individual control of each indoor unit with wireless remote control

 * Power is supplied to the outdoor unit, and all indoor units are powered by it

 * CE Approval

Product Specification:

Unit Dimension:  Indoor: 9.8”H x 28”W x 7.5”D(250x710x190 mm) (each)

 Outdoor: 33.9”H x 35.4”W x 12.4”D (860x900x315 mm)

Unit Weight:  Indoor: 7.5 Kg (Each)

 Outdoor: 65 Kg

Shipping Dimension:  Indoor: 13.4”H x 31.5”W x 10.62”D (340x800x270 mm)(Each)

Outdoor: 38”H x 41.1”W x 15.6”D (915x1043x395 mm)

Shipping Weight:  Indoor: 9.5 Kg (Each)

 Outdoor: 69 Kg

Technical Specification

Voltage

220-240 Volt

Hertz

50 Hz

Capacity

27000 BTU Capacity with 3 Evaporator (9000+9000+9000)

Indoor Unit

Cooling capacity (kW)

2.6

Heat productivity (kW)

3.2

Noise level (dB(A)

27-37

Diameter pipes, liquid (mm)

6.35

The diameter of the pipe, gas (mm)

9.52

Refrigerant

R410A/2400g

Outdoor Unit

Power consumption(kW)

4.8

Max. Input Consumption(W)

4800

Max. Current(A)

21

Outdoor Air Flow(m3/h)

3500

Outdoor Noise Level (dB(A)

57

Design Pressure (MPa)

4.2/1.5

Operation temp

17-30 ?

Ambient temp (cooling/heating)

0-50/-15-24 ?

Cooling capacity(kW)

one block: 2.1 - 5.28; four blocks 7.91

Heat productivity (kW)

one unit: 2.64 - 5.28; four blocks 8.79

Liquid side/ Gas side

4 X φ6.35/φ9.52(1/4"/3/8")

Max. distance from the outer to the ext. block

15

Max. height difference

10

Thermostat Type

Remote Control

Energy efficiency class

A / A

Height and Dimension

Unit Weight

Indoor: 7.5 Kg (each)

Outdoor: 65 Kg

Unit Dimension

Indoor: 9.8”H x 28”W x 7.5”D(250x710x190 mm) (each)

Outdoor: 33.9”H x 35.4”W x 12.4”D (860x900x315 mm)

Shipping Dimension

Indoor: 9.5 Kg (each)

Outdoor: 69 Kg

Shipping Dimension

Indoor: 13.4”H x 31.5”W x 10.62”D (340x800x270 mm)(each)

Outdoor: 38”H x 41.1”W x 15.6”D (915x1043x395 mm)

This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
