Slim, narrow design for optimum handling. Swivel-mounted die plate for better maneuverability in corners. Easy-to-change cutting tools. Lockable die plate for straight cuts. Working to scribe mark and template easily possible. For interior cut-outs.
Product Code: GNA 20 Product ID: 22989
Product sold by: samstores.com
Availability: In Stock New
Slim, narrow design for optimum handling. Swivel-mounted die plate for better manoeuvrability in corners. Easy-to-change cutting tools. Lockable die plate for straight cuts. Working to scribe mark and template easily possible. For interior cut-outs.
Specifications
Material that can be processed: Steel up to 400 N/mm² at 2.0 mm
Cutting track width: 6 mm
Pre-drilling for interior cutout: 16 mm
Smallest radius: 3 mm
Stroke rate, load: 1.500 spm
Stroke rate at no load: 2.400 spm
Weight: 2 kg
Length: 275 mm
Height: 127 mm
Maximum cut thicknesses in Steel up to 400 N/mm²: 2,0 mm
Maximum cut thicknesses in Steel up to 600 N/mm²: 1,4 mm
Maximum cut thicknesses in Steel up to 800 N/mm²: 1,0 mm
Maximum cut thicknesses in Aluminum up to 200 N/mm²: 2,5 mm
Rated power input: 500 W
Power output: 270 W
Includes
Punch (2 608 639 013), Die plate (2 608 639 900), Allen key (1 907 950 003)
This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
Online charges for shipping are the approximate charges not the final shipping charge

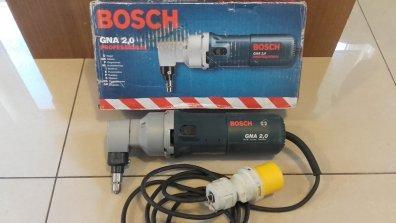

Bosch GNA 20 Nibbler 220V features a slim narrow nibbler designed for optimum handling. It has swivel-mounted die plate for better efficiency in the corners. With a cutting track width of 16mm, and smallest radius of 3mm, this tool offers better output without any hassle. It has lockable die plate for straight cuts. This tool is best for interior cuts.
