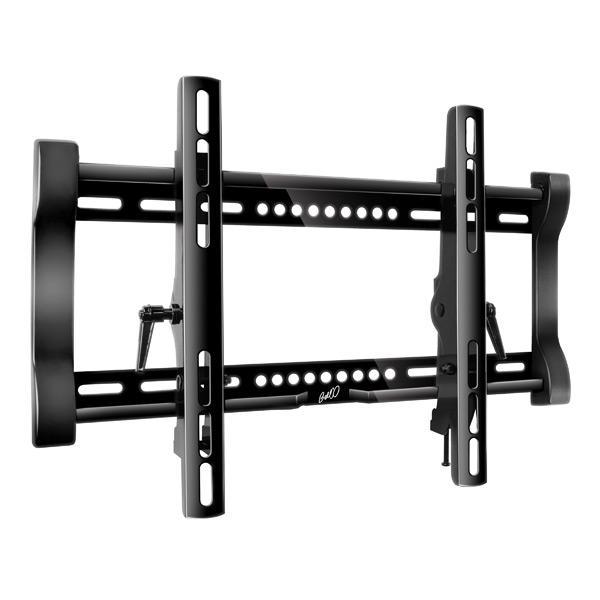

BELL`O 7745B TILTING LOW PROFILE WALL MOUNT 32"-47"

For most TVs 32" - 47". Mounts TVs only 2.35" from Wall. Holds up to 130 lbs (59 kg). Tilts from -5° to +15°. Fits VESA Configurations up to 400mm x 300mm. Patented with other Patents Pending. Decorative End Caps. Includes Manual, Install Template and all necessary mounting hardware.

Easy to install

This mount has been engineered to be easy to install. The detailed installation guide and mounting template help bring it all together to make the daunting task relatively simple.

Mounts to one or two wood studs

In addition to the common installations into two wood studs, solid concrete, or cinder block, this unique design can also be mounted off-center on just one wood stud.

Low profile

Designed to mount the television only 2.4 inches from the wall.

Unique and simple locking mechanism

Several extension screws are included at different lengths to make reaching behind the TV much easier. With a single turn of a screwdriver, the patented locking mechanism either locks or releases the monitor arms for simple installation.

Decorative end caps

Decorative end caps provide a finished appearance to the end of the wall mount when mounting in locations where the side is visible.

Multilingual installation guide

The multilingual installation guide takes you through the installation process step-by-step in easy to easy to understand terms. You can download a copy from the Downloads area for this mount.

Mounting template

A paper mounting template is included to help determine the correct place to drill the holes in your wall.

Professional quality

Heavy gauge steel, precision components and durable powder coated piano black finish are used in the construction of this mount.

Complete hardware kit

A complete hardware kit is included to fit VESA compatible mounts. The hardware is packed in individualized packets with the part identification on it. This simplifies the installation and takes the guesswork out of part selection.

Masonry hardware

Toggler brand Alligator anchors have been included for installation into brick, concrete walls and concrete block.

VESA compatible

The included mount and hardware has been approved by VESA for compliance with TV mounting standards. The Video Electronics Standards Association is a nonprofit organization that sets industry-wide standards for flat panel display mounting interfaces.

UL listed

This mount has been tested and listed by UL under Standard 1678. Underwriters Laboratories is an independent, not-for-profit product safety certification organization that has been testing products and writing Standards for Safety for over a century.

Worldwide Patents Pending

Tilting wall mount

Tilt the TV back 5 degrees or forward up to 15 degrees to achieve the optimum viewing angle and to reduce glare.

Main Features

Tilting Low Profile Wall Mount

Product Width: 20.0"/50.8 cm

Product Height: 14.0"/35.6 cm

Product Depth: 2.4"/6.1 cm

Maximum TV weight: 130 lbs./59 kg

Mounting Hole Pattern: 200 x 200 mm(7.9" x 7.9") to 400 x 300 mm (15.7" x 11.8")

Dimensions Unit

Width (in) 20.00

Height (in) 14.00

Depth (in) 2.40
