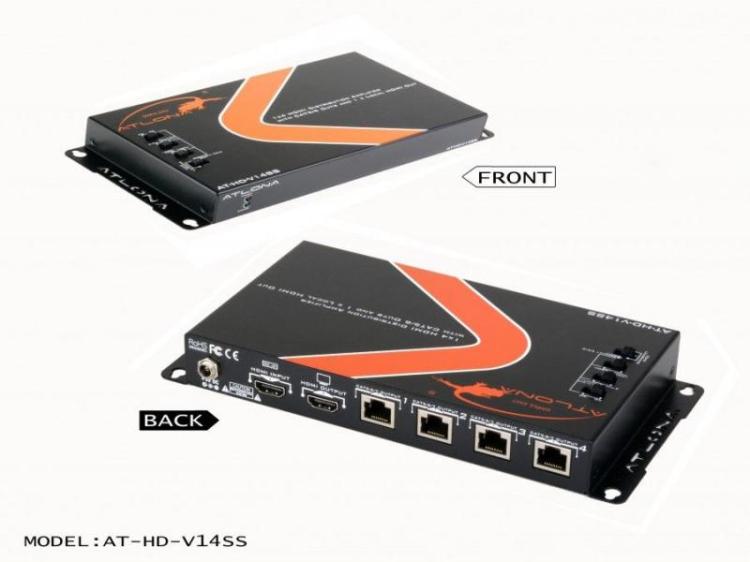

The Atlona 1x4 HDMI splitter is the perfect solution for those who want to display a single source on 4 or more displays using aSingle Twisted Pair Cat5 or Cat6 Cable. AT-HD-V14SS is capable of HDTV resolutions up to: 1080p@110ft and 1080i@200ft.
Note: A receiver unit (Balun) is required for each display and sold separately (Model: AT-HDRS, AT-HD15SRS or AT-HD50RSL). For longer runs use the AT-HDRP for up to an additional 130ft over 1080p and 200ft over 1080i.
HDMI over Single Cat5/6 (High Resolution Audio and Video)
Local HDMI Output for a local display or to chain to another Distribution Amplifier
Full 3D support
1080p@120ft (40m) and 1080i@200ft (60m)
Supports 5.1 and 7.1 Digital Audio
Silicon Image Chip-Sets allow 99.99% compatibility with all the AV gear (we only use Best)
Built-In HDMI Repeater to avoid any signal loss if long input cable is used
Supports default HDMI EDID and records the EDID of each display
Extends up to 60m (200ft) (1080i) of output single CAT5 or Cat6 cable
Extends up to 40m (120ft) (1080p) of output single CAT5 or Cat6 cable
Compatible with the AT-HDRP for those extra long runs
Video Bandwidth: 6.75 Gbps
Resolutions up to 1080p or 1920x1200
Power: 5V DC (110/240v) locking
Input: 1 x HDMI
Outputs: 4 x RJ45; 1 x HDMI Loop Out
Shipping Weight: 3 lbs.
1x 5V power adapter (110/240v) locking
1 x User Manual
110 Volts Only for use in USA
