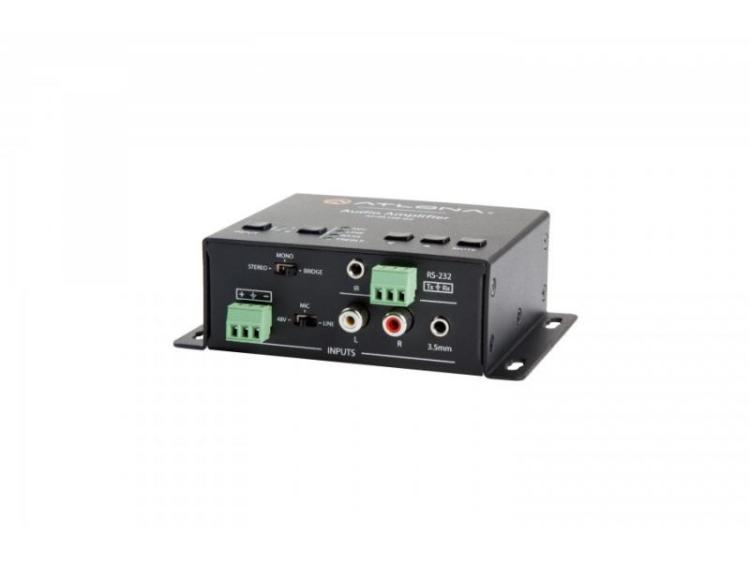

Atlona Stereo/Mono Audio Amplifier
Small, energy efficient, and affordable, the Atlona Stereo/Mono Audio Amplifier fits the needs of most offices, classrooms, and more. unlike traditional A/B amplifiers the Class D audio amplifier is energy efficient and easily integrated behind a TV where space is limited. Compatible with AT-PA1-IR
Sometimes a "D" is better than an "A"
Requiring less power, class D amplifiers use an efficient design that reduces size and cost. By removing the need for large space consuming heat syncs and power regulators, the PA100-G2 becomes easy to integrate with a small size that can fit into most spaces.
Use ALL the MICs
Using a captive screw connector and a 3 mode switch, the AT-PA100-G2 changes to meet your needs. Whether its a condenser, dynamic, or wireless MIC the PA100-G2 adapts to you.
Your control needs
Fully adjustable, the AT-PA100-G2 has three control options: RS-232, IR, and Panel Buttons. Built to suit your control needs, adjust the MIC and Line volume or the Bass and Treble levels using the control system you want.
You are the experience
Become part of the audio with a built in MIC mixing feature. Simply speak into your MIC and hear your voice along with the line audio. With only 1ms delay in MIC detection, have no noticeable lag between your words and the audio coming from the speakers.
Input Ports: 2 x RCA connectors, 1 x 3.5mm Audio, 1 x 3.5mm IR, 1 x Captive Screw MIC, 1 x Captive Screw RS-232
Output Ports: 1 x Captive Screw Audio, 1 x 3.5mm Loop Out
Dimensions (HxWxD): 1.5 x 3.78 x 3.43 (inch) or 38 x 96 x 87 (mm)
Weight: 0.66lbs or 0.3kg
Power consumption: 3.6W
Frequency Range: 20Hz to 20KHz
Signal/Noise Ratio: 80dB (at max output)
Total Harmonic Distortion: 1% (1KHz), 0.3% (20KHz) -- at nominal levels
Input Impedance: Input 1&2: >10KO
MIC Input Impedance: 48V: 35KO, MIC: 10KO, LINE: 75KO
Output Impedance: 3.5mm Loop Out: 50O stereo, Speaker out: 4 ~ 8O Amplifier
Stereo Channel Separation: >75dB from 20Hz to 20KHz
Common Mode Rejection Ratio: >70dB from 20Hz to 20KHz
MIC Audio Detection Delay: 1ms
1 x AT-PA100-G2
1 x AC Adapter
1 x User Manual
Brand: Atlona Technologies
Weight: 1.00 lbs
Warranty: 3 Years
110 Volts Only for use in USA
