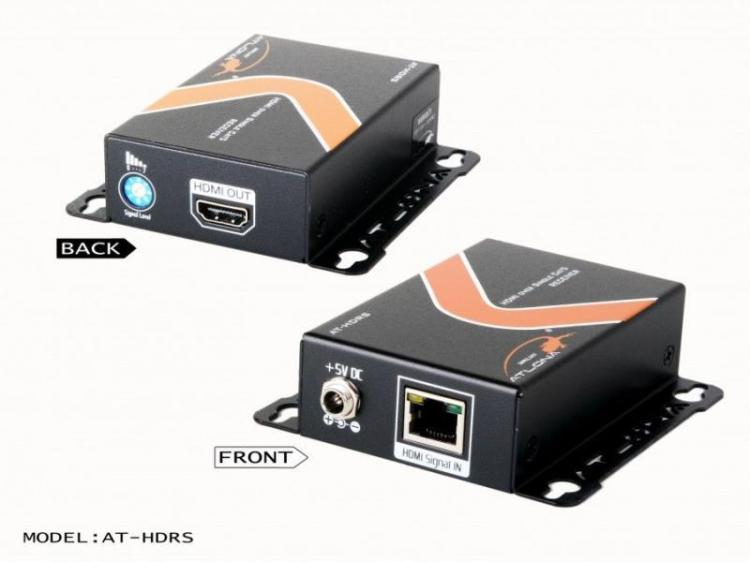

The Atlona AT-HDRS is an HDMI over single Cat5 receiver unit which is designed to work with 1x9 HDMI Splitter (Model: AT-HD19SS) or HDMI Transmitter (AT-HD50SS). The AT-HDRS is capable of extending high resolution video and audio from the 1x9 HDMI splitter up to 1080i @ 200ft and 1080p @ 110ft over single Cat5 or Cat6 cable.
Note: A sender unit is required to generate signal for AT-HDRS (which is just a receiver). Please use 1x9 HDMI splitter (Model: AT-HDMI19SS) as a sender unit.
HDMI over Single Cat5 (High Resolution Audio and Video)
1080p@110ft (35m) and 1080i@200ft (60m)
Built-In HDMI Repeater to avoid any signal loss if long output cable is used
Supports up to 5.1 and 7.1 Digital audio
Silicon Image Chip-Sets allow %99.99 compatability with all the AV gear (we only use Best)
Supports default HDMI EDID and records the EDID of each display
Extends up to 60m (200ft) (1080i) of output single CAT5 or Cat6 cable
Extends up to 35m (110ft) (1080p) of output single CAT5 or Cat6 cable
Video Bandwidth: 165 MHz
Resolutions up to 1080p or 1920x1200
Power: 5V DC (110/240v)
Input: 1 x RJ45
Output: 1 x HDMI
Dimensions: 3.4 "W x 2.4 "D x 1 "H
Shipping Weight: 1 lbs.
1x 5V power adapter (110/240v)
1 x User Manual
3 year parts and labor
