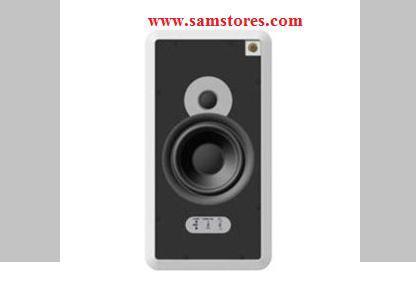

ATLANTIC TECHNOLOGY IWTS7LCRIPS 6.5 TWO-WAY W/DVC IN-WALL LCR SPEAKER IP FOR 110 VOLTS IN USA USE ONLY

Dual-use flexibility at no increase in cost!

The IWTS-7 and 14 LCR-IP combine Atlantic's renowned acoustic performance with the flexibility of being fully compatible with the latest NetStreams IP-addressible whole-house systems. These new IP versions have a two-position switch on the crossover PCB that allows them to be used either as a 'regular' Atlantic in-wall speaker, connected with speaker wire to the terminals as usual, or you can connect them to a NetStreams system by using the on-board Phoenix connector.

However, this enhanced system compatibility does not come at the expense of basic acoustic performance. Quite the contrary--these speakers share virtually all of the advanced design and engineering features of our much-lauded IWCB Closed-Box in-walls.

Resonant-free MDF baffles, wide-dispersion Low Resonance Tweeters, and our exclusive Directional Vector Control means that the 7 and 14 LCR-IP stand well above the ordinary.

And to make things as convenient as possible, the grille/frame assemblies for the 7 and 14 LCR (the GFR-52 and GFR-525) are packaged and sold separately, to maximize the convenience and timing of the installation.

Superb front-channel sound for home theater or whole-house audio

Compatibility with NetStreams whole-house systems

MDF baffles for superior acoustic performance

Atlantic Exclusive DVC control, directs sound electronically, not mechanically

LRT wide-dispersion tweeter for better sound coverage

Simple, tried-and-true frame baffle installation (Frame/grilles sold separately)

Both models well-suited for surround channel use in 5.1 or 7.1 systems

Main Features In-wall speakers

All Features

Model IWTS-7 LCR-IP

Overall Dimensions (W x H x D) 9 1/4" x 17 3/4" x 3 7/8"D (236 x 449 x 100 mm)

Cut-out Dimensions (W x H) 8 1/2 x 16 1/2 (216 x 420 mm)

Drivers/Design 2-way

6 1/2" (165 mm) GLH* woofer

1" (25 mm) soft dome tweeter

Frequency Response 53 - 20kHz +/- 3dB

Sensitivity 87dB

Impedance 6 Ohms

Crossover Frequency 2100 kHz

Optional New Construction Mounting Bracket IN-NC-52
