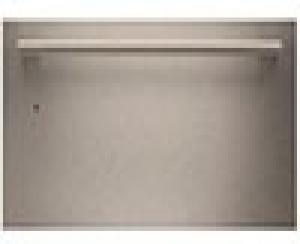

AEG KD92903E STAINLESS STEEL PLATE WARMING DRAWERS 220-240 VOLT/ 50 HZ

AEG KD92903E 220-240 volt/ 50 Hz, Stainless Steel Plate Warming Drawers

This appliance is not designed for use in America - only for countries that use 220V electrical outlets.

* 29.5 cm. High Drawer Warming

* 12 Standard Place setting

* 0.43 kW Total connected load

* 13 A fuse rating

* Fan air circulation

* Variable temperature control

* Adjustable thermostat Rotary control knob

* ON/ off switch with LED lamp

* Anti-slip mat

* Temperature range 30°C-80°C

* Perfect stability and direct access for constant availability

* Towel rail handle

* 550 Watts Power

* Anti-fingerprint stainless steel.

Product Specification:

Unit Dimension:                11.61”H x 23.38”W x 21.06”D (295x594x535mm)

Product Type:     Stainless Steel Plate Warming Drawers

INSTALLATION INSTRUCTIONS

Before installation Check that the input voltage indicated on the characteristics plate is the same as the voltage of the power outlet you are going to use. Open the drawer and take out all the accessories and remove the packing material.

Attention!

The front surface of the crockery heater may be wrapped in a protective film.  Before using the crockery warmer for the first time, remove this film carefully.  Make sure that the crockery warmer is not damaged in any way.  Check that the drawer opens and closes correctly. If you find any damage, contact the Technical Assistance Service.

Attention:

The power socket should be easily accessible after the crockery warmer has been installed. The crockery warmer should only be built in in combination with those appliances indicated by the manufacturer. If it is fitted in combination with other appliances, the guarantee is no longer valid since it is impossible to guarantee that the crockery warmer will work correctly.

Installation

To build in the crockery warmer in combination with another appliance there must be a fixed, interim shelf in the housing unit to support the weight of both appliances.  The appliance to be combined with the crockery warmer will be placed directly on the latter without any need to have a separating shelf.  To build-in the appliance which is combined with the crockery warmer, follow the instructions set out in the respective instructions and fitting booklet. The relevant installation dimensions are indicated in mm in the diagrams shown at the end of this booklet.

Proceed as follows:

Place the crockery warmer on the shelf and slide it towards the interior of the niche in such a way that it is centered and completely lined up with the front of the unit.

Check that the crockery warmers frame is properly leveled and is sitting evenly on the shelf.

Open the drawer and fix the crockery warmer to the sides of the unit using the provided screws.

APPLIANCE DESCRIPTION

Main Components

How the crockery warmer works

This appliance is equipped with a warm air circulation system. A fan distributes the heat      generated by an electrical heating element throughout the interior of the appliance. The thermostat allows the user to define and control the temperature wanted for the crockery.           The circulating hot air that is generated heats up the crockery quickly and evenly. A metal grille protects both the heating element and the fan. The base of the drawer is fitted with a non - slip mat to prevent plates and dishes sliding around when the drawer is opened and closed.

Function selector Handle On/Off switch

Anti - Slip mat Control Lamp
Drawer Grid

*

6

3

5

2

4

1

6

KD92903E Drawer Grid only available with the model KD92903E

This appliance is not designed for use in America - only for countries that use 220V electrical outlets.

For Large Appliances above 80 pounds the shipping rates may vary depending upon state.

For Residential delivery there will additional $40 to $75 charge.

Online charges for shipping are the approximate charges not the final shipping charge

AEG KD92903E Stainless Steel Plate Warming Drawers 220-240 Volt/ 50 HZ available at Sam Stores is an exclusive plate warming drawer. Size of the warming drawer is 29.5 cm with 12 standard place setting. The offered model can work on different temperature which can be adjusted by the thermostat rotary control knob. Its body is made up of anti-finger print stainless steel which gives it a clean and sturdy look. Air is circulated by a fan which circulates uniform air at every point. The on/off switch has a LED indicator which indicates the working position of the drawer. Place your order now.
